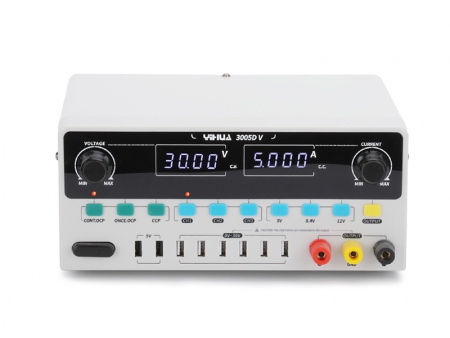

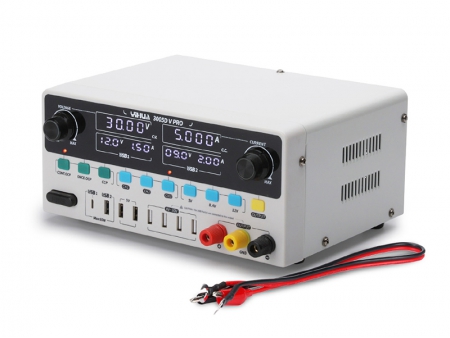

YIHUA 3005D V PRO Linear DC Power Supply (30V/5A Single Output) Manufacturer

YIHUA 3005D V PRO Linear DC Power Supply (30V/5A Single Output)

Request a Quote

Website: http://yihua-soldering.com/14-8-linear-dc-power-supply.html

This regulated DC power supply is engineered to meet the needs of scientific research, product development, testing labs, educational facilities, electronics manufacturing, and repair work.

Key Characteristics

Features highly stable voltage regulation, excellent load capacity, and low ripple, along with built-in short circuit, overcurrent, and overheat protection.
Equipped with a toroidal transformer to minimize energy loss and reduce heat generation.
Offers quick-access fixed voltages of 5V, 9V, and 12V, plus three preset channels for fast switching between multiple voltage settings.
Supports constant current output with automatic overcurrent stop and auto-resume modes, allowing users to select the best option for their needs.
Includes a 65W quick charge port, a 40W quick charge port, and four USB ports operating in parallel with the 30V output—ensure loads are connected properly to avoid damage.

Parameters

Model	3005D V PRO
Rated power	330W
Main unit dimensions	L196×W250×H117±10mm
Operating ambient temperature	-10〜40℃/14℉〜104℉
Relative humidity	< 90%
Relative voltage	DC 0~30V
Output power	150W
Voltage accuracy	< 0.1 %±0.03V
Current accuracy	< 03%±3mA
Load regulation	< 0.6% 10mV
Ripple VRMS	< 0.5%(10Hz-1MHz)
Output current	0-5A
