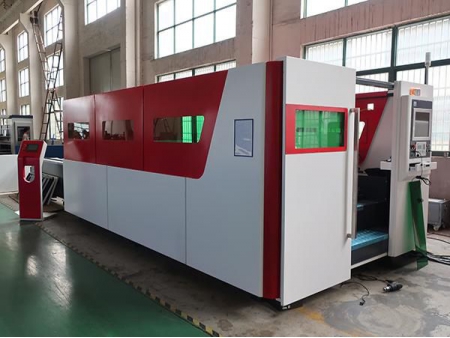

1kW~6kW High Power Fiber Laser CNC Cutting Machine

Request a Quote

Website: http://accurlcnc.com/1kw-6kw-high-power-fiber-laser-cnc-cutting-machine/341661/index.html

The outstandingly flexible Accurl eco-fiber 1kw~6kw fiber laser cutter is specially designed for ultra-high speed cutting operations for thin sheet materials. The automated cutting equipment can cut through ferrous and non-ferrous materials with excellent low cost operation.

Features

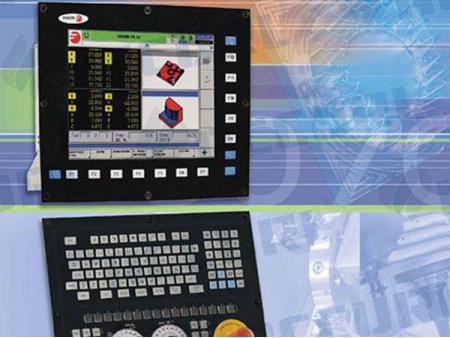

User-friendly Fagor 8060 CNC control unit.

Unique features:
Maximum simultaneous positioning speed: 160m/min.
Acceleration speed: 25 m/ s2 (2.5G).
Precision: ± 0.05 mm.
Energy efficiency: greatly reduced power consumption.

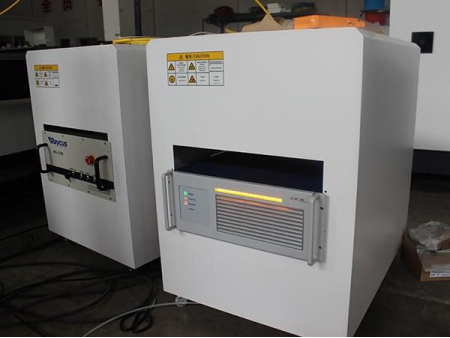

IPG YLS-1000w Resonator

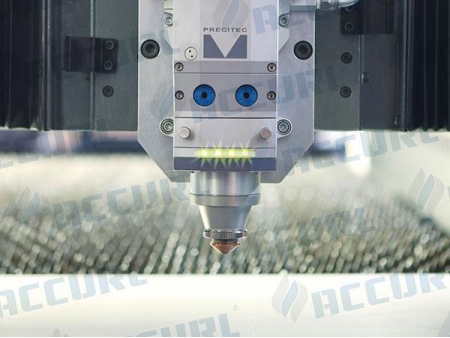

Advanced PRECITEC cutting head (with air cross blast).

Fully enclosed designed for maximum operator protection.

Effective high to low pressure gas exchange system.

High pressure cutting head with high precision capacitive sensor/

Automatic mechanized Nesting power output control function.

Automatic time and unit cost calculation function.

External network connectivity

Smoke extraction unit (included in series models).

Workpiece and trimming collection unit.

Dual proportional valve control system for different gas pressures and a high pressure cutting system.

Standard Equipment Sets

FAGOR 8060 CNC Controller

IPG YLS-1kW~6kW Ytterbium Laser Resonator

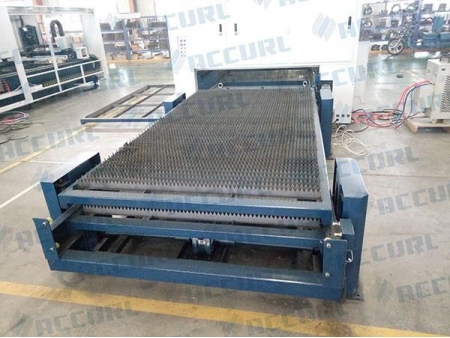

Automatic double pallet changer (Shuttle Table)

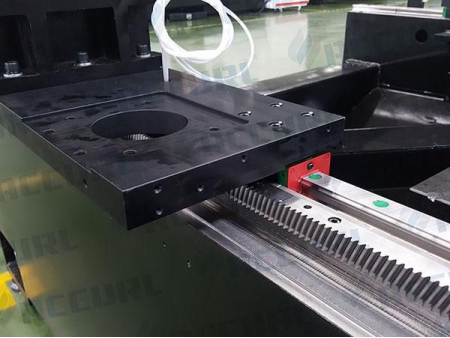

Precision Rack & Pinion Drive System (Made in Germany)

Radan or Lantek CAD/CAM system

Light source

Chiller

3 lower protective lenses

3 Ceramic Nozzle Adapters

Auto-calibrated nozzle system

Lens with 5.9” Focus Length

Smart Slag Collection System/ Chip Conveyor

Fiber Beam Transmission System (Fiber Cable)

Operates with both N2 and O2 (cutting) gases

Home Position Alignment System

Auxiliary Gas Selector

Auto Reflection Warning

Working Lights

5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Specifications

Model	ECO-FIBER 3015 / 1kW
CNC Control Unit	FAGOR 8060 CNC System
X axis (Rack & Pinion)	3000 mm
Y axis (Rack & Pinion)	1500 mm
Z axis (Ball Screw)	100 mm
Maximum cutting capacity	Mild steel	10 mm
	Stainless steel	4 mm
	Aluminum	3 mm
Work piece dimensions	1525 x 3050 mm
Rapid traverse (X and Y axis)	105 m/min
Acceleration	2.5G (25m/s2)
Vector speed	148 m/min
Absolute positioning accuracy	± 0.08 mm
Repeatability (X and Y axis)	± 0.03 mm
Max. load capacity	2450 kg
High Performance CNC System	FAGOR 8060 from Spain Brand
Laser power	IPG YLS-1 kW from Germany

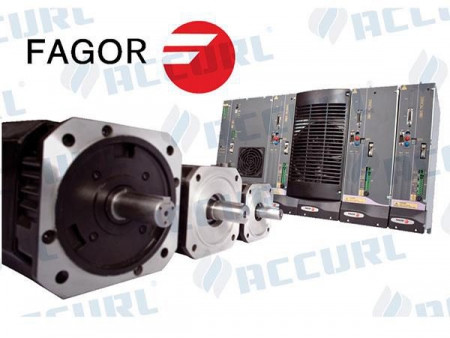

High Performance Servo motor/drive	FAGOR from Spain Brand
Laser Cutting Head	PRECITEC from Germany
Motoreducer	STOBER from Germany

Model	ECO-FIBER 3015 / 2kW
CNC Control Unit	FAGOR 8060 CNC System
X axis (Rack & Pinion)	3000 mm
Y axis (Rack & Pinion)	1500 mm
Z axis (Ball Screw)	100 mm
Maximum cutting capacity	Mild steel	16 mm
	Stainless steel	8 mm
	Aluminum	6 mm
Work piece dimensions	1525 x 3050 mm
Rapid traverse (X and Y axis)	105 m/min
Acceleration	2.5G (25m/s2)
Vector speed	148 m/min
Absolute positioning accuracy	± 0.08 mm
Repeatability (X and Y axis)	± 0.03 mm
Max. load capacity	2450 kg
High Performance CNC System	FAGOR 8060 from Spain Brand
Laser power	IPG YLS-2 kW from Germany
High Performance Servo motor/drive	FAGOR from Spain Brand
Laser Cutting Head	PRECITEC from Germany
Motoreducer	STOBER from Germany

Model	ECO-FIBER 3015 / 3kW
CNC Control Unit	FAGOR 8060 CNC System
X axis (Rack & Pinion)	3000 mm
Y axis (Rack & Pinion)	1500 mm
Z axis (Ball Screw)	100 mm
Maximum cutting capacity	Mild steel	20 mm
	Stainless steel	10 mm
	Aluminum	8 mm
Work piece dimensions	1525 x 3050 mm
Rapid traverse (X and Y axis)	105 m/min
Acceleration	2.5G (25m/s2)
Vector speed	148 m/min
Absolute positioning accuracy	± 0.08 mm
Repeatability (X and Y axis)	± 0.03 mm
Max. load capacity	2450 kg
High Performance CNC System	FAGOR 8060 from Spain Brand
Laser power	IPG YLS-3 kW from Germany
High Performance Servo motor/drive	FAGOR from Spain Brand
Laser Cutting Head	PRECITEC from Germany
Motoreducer	STOBER from Germany

Model	ECO-FIBER 3015 / 4kW
CNC Control Unit	FAGOR 8060 CNC System
X axis (Rack & Pinion)	3000 mm
Y axis (Rack & Pinion)	1500 mm
Z axis (Ball Screw)	100 mm
Maximum cutting capacity	Mild steel	25 mm
	Stainless steel	12 mm
	Aluminum	10 mm
Work piece dimensions	1525 x 3050 mm
Rapid traverse (X and Y axis)	105 m/min
Acceleration	2.5G (25m/s2)
Vector speed	148 m/min
Absolute positioning accuracy	± 0.08 mm
Repeatability (X and Y axis)	± 0.03 mm
Max. load capacity	2450 kg
High Performance CNC System	FAGOR 8060 from Spain Brand
Laser power	IPG YLS-4 kW from Germany
High Performance Servo motor/drive	FAGOR from Spain Brand
Laser Cutting Head	PRECITEC from Germany
Motoreducer	STOBER from Germany

Model	ECO-FIBER 3015 / 6kW
CNC Control Unit	FAGOR 8060 CNC System
X axis (Rack & Pinion)	3000 mm
Y axis (Rack & Pinion)	1500 mm
Z axis (Ball Screw)	100 mm
Maximum cutting capacity	Mild steel	32 mm
	Stainless steel	16 mm
	Aluminum	16 mm
Work piece dimensions	1525 x 3050 mm
Rapid traverse (X and Y axis)	105 m/min
Acceleration	2.5G (25m/s2)
Vector speed	148 m/min
Absolute positioning accuracy	± 0.08 mm
Repeatability (X and Y axis)	± 0.03 mm
Max. load capacity	2450 kg
High Performance CNC System	FAGOR 8060 from Spain Brand
Laser power	IPG YLS-6 kW from Germany
High Performance Servo motor/drive	FAGOR from Spain Brand
Laser Cutting Head	PRECITEC from Germany
Motor reducer	STOBER from Germany

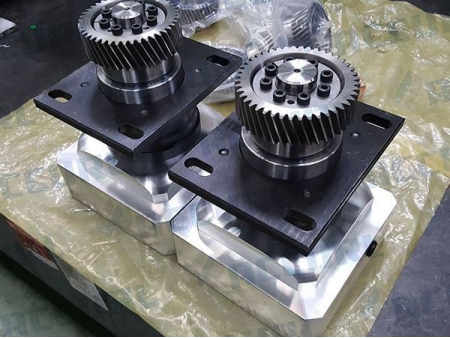

Detailed Pictures
