60mm 6W Brush DC Gear Motor

Request a Quote

Website: http://zd-drivers.com/2-1-1-brush-dc-gear-motor.html

Motor Specifications

Model	Voltage	Power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Power	Speed	Current	Speed	Torque	Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	H	kg
Z2D06-12	12	6	3200	0.6Max	2950	19	0.8	2000	0.6
Z2DW06-12	12	6	3200	0.6Max	2950	19	0.8	2000	0.6
Z2D06-24	24	6	3200	0.3Max.	2950	19	0.5	2000	0.6
Z2DW06-24	24	6	3200	0.3Max.	2950	19	0.5	2000	0.6
Z2D06-90	90	6	3000	0.2Max.	2800	20	0.3	2000	0.6
Z2DW06-90	90	6	3000	0.2Max.	2800	20	0.3	2000	0.6

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Z2D06-24GN	Speed r/min	983	819	590	492	393	328	295	236	197	164	148	118	98	82	74	59	49	39	33	30	25	20	16	15
	2GN()K	0.05	0.06	0.08	0.09	0.12	0.14	0.16	0.20	0.24	0.28	0.28	0.35	0.42	0.51	0.57	0.71	0.76	0.96	1.15	1.27	1.53	1.91	2.29	2.55
	2GN()K	0.46	0.56	0.77	0.93	1.16	1.39	1.54	1.93	2.31	2.78	2.78	3.47	4.16	5.00	5.55	6.94	7.49	9.37	11.2	12.5	15.0	18.7	22.5	25.0

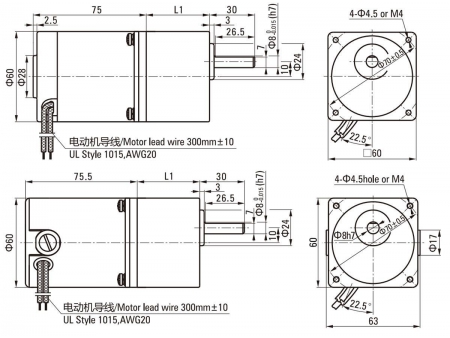

L1=41mm

Applications

Cleaning Equipment: Floor scrubbers, photovoltaic cleaning robots, autonomous sweeping robots.

Healthcare Mobility: Electric wheelchairs.

Automation: Belt conveyors for injection molding, automated production lines, photovoltaic panel conveyors, custom automation lines, 3C automation systems.

Food Industry: Pizza baking ovens.

Access Control: Channel gates, industrial doors, vehicle barriers.

Positioning Systems: Indexers for precision assembly.

Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
