Economical/Intelligent PON Power Meter
Request a Quote

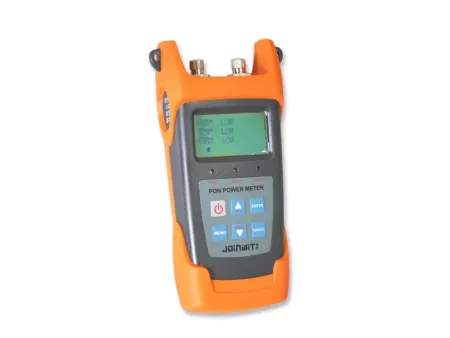

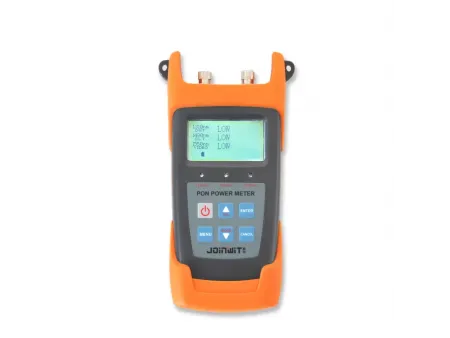

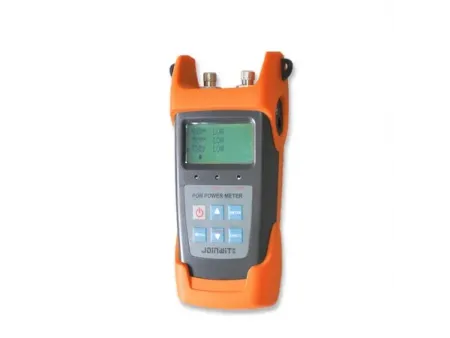

JW3213/JW3213N
To support the growing demands of FTTx networks, the Economical and Intelligent PON Power Meters offer practical and versatile solutions for deployment, maintenance, and diagnostics. These power metering devices extract a minimal portion of the optical signal from the network, allowing precise measurements at any stage of operation. Designed to ensure network reliability, they validate signal performance for voice, data, and video services in various PON architectures. Both models are equipped with features tailored to meet specific needs, ensuring compatibility with existing and future network infrastructures.
Features
JW3213
- Measures voice, data, and video signals in PON architectures simultaneously.
- Detects 1310nm upstream burst signals and 1490/1550nm downstream signals.
- Configurable thresholds and alarms for effective monitoring.
- Stores up to 1,000 records, enabling detailed data analysis.
- Includes functionalities such as a visual fault locator and standard optical power meter.
- Compatible with alkaline, lithium, and NiMH batteries, as well as power adapters.
JW3213N
- Supports BPON, EPON, and GPON network architectures with synchronized signal measurement.
- Allows simultaneous testing of 1310nm upstream and 1490/1550nm downstream signals.
- Burst mode testing enhances diagnostic capabilities.
- Offers customizable thresholds, file storage, and file naming for streamlined operation.
- Real-time status updates with three-color alarm indicators.
- Provides optional features like a visual fault locator and standard optical power meter functionalities.
- Supports Chinese, English, and an additional language for multi-language usability.
- Compatible with lithium, alkaline, or NiMH batteries, and power adapters for flexibility.
- Equipped with a USB communication interface for seamless PC integration.
- Works with advanced PC software for enhanced control and functionality.
Specifications
| PON Power Meter | |||
| Measurement Wavelength | 1310nm 1490nm | 1550nm | |
| Measurement Range | 13 to -40dBm | 13 to -50dBm | 25 to -50dBm |
| Spectral Passband | 1310nm ±50nm, 1490nm ±10nm | 1550nm ±15nm | |
| Insertion Loss | ≤1.5dB | ||
| Uncertainty | ≤0.5dB | ||

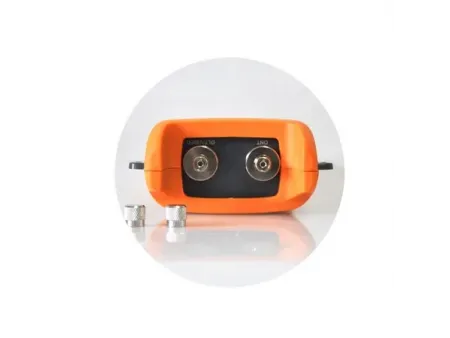

| Optical Connector Type | SC/PC (optional) | ||
| Display Resolution | 0.01dB | ||
| Threshold Setting | 10 groups | ||
| Data Storage | 1000 records | ||
| General Use Power Meter (Optional) | |||
| Measurement Range | 26 to -50dBm | ||
| Calibration Wavelength | 850/1300/1310/1490/1550/1625nm | ||
| Uncertainty | ≤0.5dB² | ||
| Visual Fault Locator (VFL) (Optional) | |||
| Wavelength | 650nm | ||
| Output Power | 10mW | ||
| Modulation Frequency | CW/2Hz | ||
| General | |||
| Operating Temperature | 10 to 60℃ | ||
| Storage Temperature | -25 to 70℃ | ||
| Relative Humidity | ≤75% RH | ||

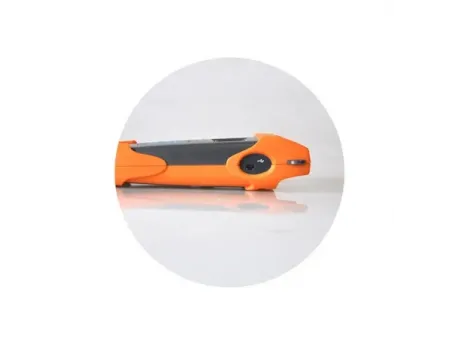

| Communication Interface | Mini USB | ||

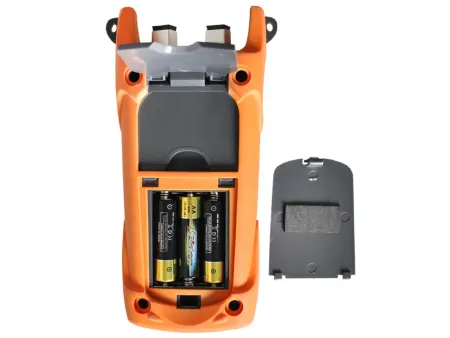

| Power Supply | 3*AA 1.5V battery, Mini USB power supply adapter (lithium battery optional) | ||
| Operating Time | ≥80h | ||
| Dimensions | 192×105×50mm | ||
| Weight | 300g | ||
| Measurement Wavelength | 1310nm upstream | 1490nm downstream | 1550nm downstream |
| Measurement Range | 10 to -35dBm | 12 to -40dBm | 25 to -40dBm |
| Spectral Passband | 1310nm ±50nm | 1490nm ±15nm | 1550nm ±10nm |
| Isolation 1310nm | / | >40dB | >40dB |
| Isolation 1490nm | >40dB | / | >40dB |
| Isolation 1550nm | >40dB | >40dB | / |
| Uncertainty | ≤0.5dB | ||
| Calibration Wavelength | 1310/1490/1550/1625nm | ||
| Display Resolution | 0.01dB | ||
| Insertion Loss | ≤1.5dB | ||

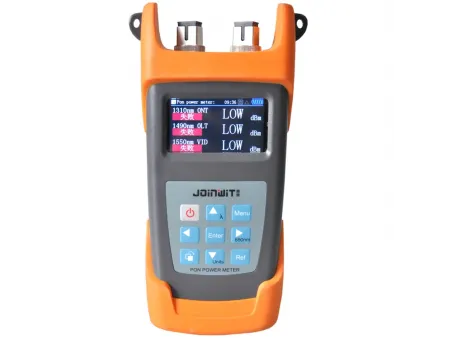

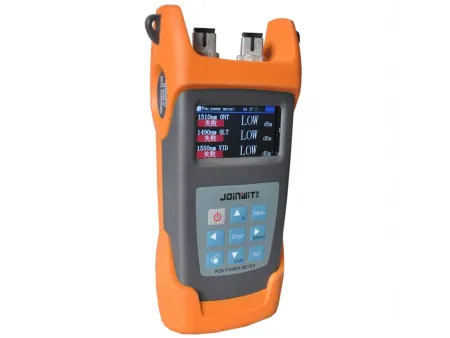

| Display | TFT color screen | ||
| Optical Connector Type | FC/SC/ST/general connector | ||
| Data Storage | 1000 records | ||
| Power Supply | Lithium battery/3* AA 1.5V battery | ||
| Battery Operating Time | ≥6h | ||
| Operating Temperature | -10 to 60℃ | ||
| Storage Temperature | -25 to 70℃ | ||
| Relative Humidity | 0 to 95% (non-condensing) | ||
| Weight (without battery and module) | 423g | ||
| Dimensions | 192×102×50mm | ||
