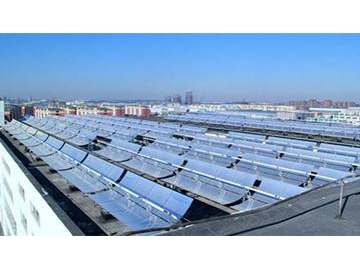

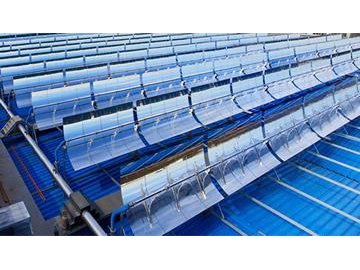

Solar HTF (heat transfer fluid) boiler system uses solar energy to heat thermal oil, and achieve a stable output. It consists of three parts: solar parabolic trough reflector, accumulator, and thermal oil boiler.

The solar thermal oil boiler has a wide application range, including food processing, chemical industries, electronic component production and other industries that require a high temperature thermal oil as the heat source. Its maximum output temperature is 280°C.

Technical Parameters
  • Solar HTF (heat transfer fluid) boiler- VS0120G
    Project VS0120G
    Rated power (kW) 120
    Heat supply (*10^4kcal) 10
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 240
    Weight (t) 12.16
    Row number*Group number 2*16
    Installation area (m2) 480
    Fuel gas thermal oil boiler
    Rated power (kW) 120
    Heat supply (*10^4kcal) 10
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 12.5
    Max fuel gas volume (Nm^3/h) 14
  • Solar HTF (heat transfer fluid) boiler- VS024G
    Project VS024G
    Rated power (kW) 240
    Heat supply (*10^4kcal) 20
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 480
    Weight (t) 21.32
    Row number*Group number 4*32
    Installation area (m2) 960
    Fuel gas thermal oil boiler
    Rated power (kW) 240
    Heat supply (*10^4kcal) 20
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 20
    Max fuel gas volume (Nm^3/h) 29
  • Solar HTF (heat transfer fluid) boiler- VS036G
    Project VS036G
    Rated power (kW) 360
    Heat supply (*10^4kcal) 30
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 720
    Weight (t) 36.48
    Row number*Group number 6*16
    Installation area (m2) 1440
    Fuel gas thermal oil boiler
    Rated power (kW) 360
    Heat supply (*10^4kcal) 30
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 30
    Max fuel gas volume (Nm^3/h) 42
  • Solar HTF (heat transfer fluid) boiler- VS048G
    Project VS048G
    Rated power (kW) 480
    Heat supply (*10^4kcal) 40
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 960
    Weight (t) 48.64
    Row number*Group number 8*16
    Installation area (m2) 1920
    Fuel gas thermal oil boiler
    Rated power (kW) 480
    Heat supply (*10^4kcal) 40
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 40
    Max fuel gas volume (Nm^3/h) 56
  • Solar HTF (heat transfer fluid) boiler- VS072G
    Project VS072G
    Rated power (kW) 720
    Heat supply (*10^4kcal) 60
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 1440
    Weight (t) 72.96
    Row number*Group number 12*16
    Installation area (m2) 2880
    Fuel gas thermal oil boiler
    Rated power (kW) 720
    Heat supply (*10^4kcal) 60
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 60
    Max fuel gas volume (Nm^3/h) 83
  • Solar HTF (heat transfer fluid) boiler- VS096G
    Project VS096G
    Rated power (kW) 960
    Heat supply (*10^4kcal) 80
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 1920
    Weight (t) 97.28
    Row number*Group number 16*16
    Installation area (m2) 3840
    Fuel gas thermal oil boiler
    Rated power (kW) 960
    Heat supply (*10^4kcal) 80
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 80
    Max fuel gas volume (Nm^3/h) 112
  • Solar HTF (heat transfer fluid) boiler- VS01200G
    Project VS01200G
    Rated power (kW) 1200
    Heat supply (*10^4kcal) 100
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 2400
    Weight (t) 121.6
    Row number*Group number 20*16
    Installation area (m2) 4800
    Fuel gas thermal oil boiler
    Rated power (kW) 1200
    Heat supply (*10^4kcal) 100
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 100
    Max fuel gas volume (Nm^3/h) 143
  • Solar HTF (heat transfer fluid) boiler- VS01400G
    Project VS01400G
    Rated power (kW) 1400
    Heat supply (*10^4kcal) 120
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 2880
    Weight (t) 145.92
    Row number*Group number 24*16
    Installation area (m2) 5760
    Fuel gas thermal oil boiler
    Rated power (kW) 1400
    Heat supply (*10^4kcal) 120
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 100
    Max fuel gas volume (Nm^3/h) 167
  • Solar HTF (heat transfer fluid) boiler- VS01800G
    Project VS01800G
    Rated power (kW) 1800
    Heat supply (*10^4kcal) 150
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 3600
    Weight (t) 182.4
    Row number*Group number 30*16
    Installation area (m2) 7200
    Fuel gas thermal oil boiler
    Rated power (kW) 1800
    Heat supply (*10^4kcal) 150
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 120
    Max fuel gas volume (Nm^3/h) 214
  • Solar HTF (heat transfer fluid) boiler- VS02400G
    Project VS02400G
    Rated power (kW) 2400
    Heat supply (*10^4kcal) 200
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 4800
    Weight (t) 243.2
    Row number*Group number 40*16
    Installation area (m2) 9600
    Fuel gas thermal oil boiler
    Rated power (kW) 2400
    Heat supply (*10^4kcal) 200
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 160
    Max fuel gas volume (Nm^3/h) 286
  • Solar HTF (heat transfer fluid) boiler- VS02800G
    Project VS02800G
    Rated power (kW) 2800
    Heat supply (*10^4kcal) 240
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 5760
    Weight (t) 291.84
    Row number*Group number 48*16
    Installation area (m2) 11520
    Fuel gas thermal oil boiler
    Rated power (kW) 2800
    Heat supply (*10^4kcal) 240
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 200
    Max fuel gas volume (Nm^3/h) 333
  • Solar HTF (heat transfer fluid) boiler- VS03600G
    Project VS03600G
    Rated power (kW) 3600
    Heat supply (*10^4kcal) 300
    Solar energy parabolic trough reflector
    Heating medium Thermal oil
    Aperture area (m2) 7200
    Weight (t) 364.8
    Row number*Group number 60*16
    Installation area (m2) 14400
    Fuel gas thermal oil boiler
    Rated power (kW) 3600
    Heat supply (*10^4kcal) 300
    Designed pressure (MPa) 1.1
    Fuel gas type Natural gas
    Max operating temperature of medium(°C) 320
    Max circulating volume(m^3/h) 250
    Max fuel gas volume (Nm^3/h) 41
