Request a Quote
AL2311/AL2321

Power driven rollers for chain driven roller conveyor

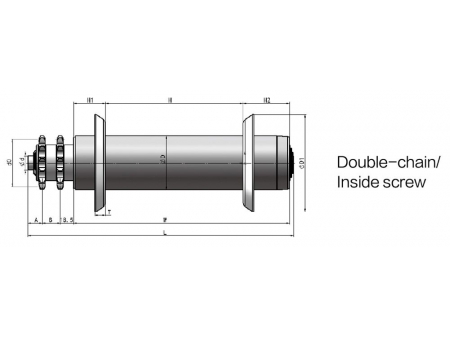

Double - chain / Inside screw
Applications

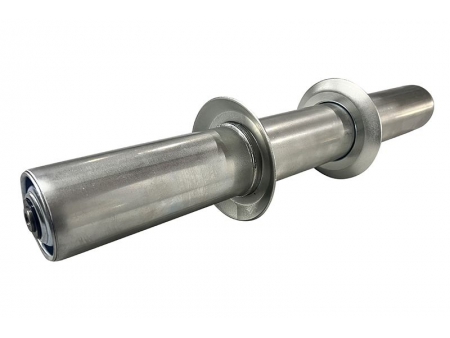

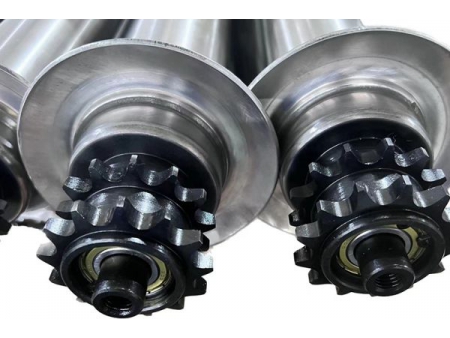

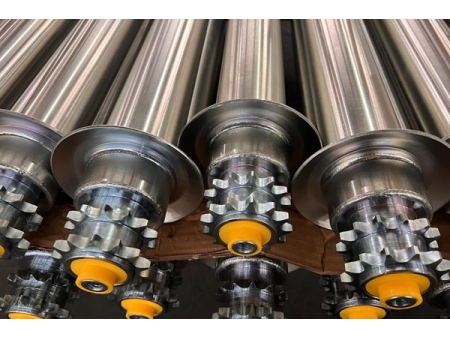

Double-sprocket driven conveyor roller with flanges is used in storage and retrieval systems for neat and efficient warehouse environments, making warehouse signage clearer, facilitating faster and more accurate goods retrieval, and reducing space wastage. Mainly used in gravity or chain-driven conveyors.

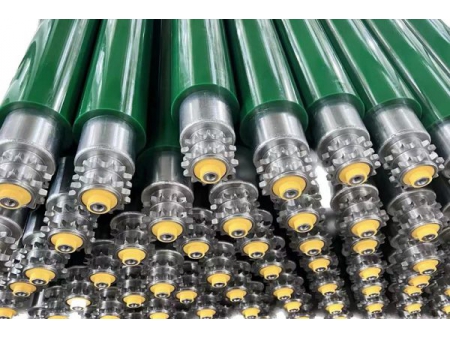

Double-sprocket driven rubber-coated conveyor roller is used in EV battery projects, the conditions for EV battery projects are quite harsh, prohibiting zinc, copper, and nickel. Therefore, the roller tube is made of stainless steel, and the sprocket and metal end caps are phosphated and blackened. The surface of the roller tube can be perforated to position the rubber sleeve, and the hole positions can be customized following customer demands.

Features
  • Sprocket driven conveyor roller is made of stainless steel and can be used in extreme environments ranging from extremely cold to high temperatures.
  • Steel sprocket with high-frequency hardened teeth
  • Heavy load capacity, smooth operation, wide application range
  • Temperature range: -20°C to 80°C
  • Can be equipped with rubber-coated roller tubes
  • Some models can be equipped with flanges
Technical Data
Tube Diameter (D) Tube Thickness (T) Axis Diameter (d) Sprocket Tube Material
Galvanized Steel Stainless Steel
38 1.5/2.0 12 08B9Z/08B11Z/08B14Z
50 1.5/2.0 12/15 08B11Z/08B14Z
60 2.0 12/15 08B14Z
63.5 2.0 12/15 08B14Z
76 3.0 20 10A13Z
89 3.0 20 10A13Z/10A15Z
Tube Diameter (D) Flange Fixed Form Flange Material Outer Flange Diameter (D) Drive Side Distance H1 End Distance H2
60 Welded Steel 100 ≥30 ≥30
76 Welded Steel 136 ≥30 ≥30
76 Double screw tightening Aluminum alloy 136 ≥10 ≥10
80 Welded Steel 150 ≥30 ≥30
89 Welded Steel 150 ≥30 ≥30
