Asphalt chip sealing truck, road paving equipment, asphalt emulsion sprayer, chip sealing tuck distributor, we offer asphalt pavement machinery and equipment

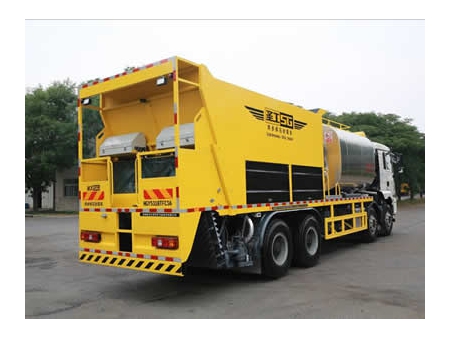

For road construction and maintenance of driveway, highway and the bridge road, the chip seal distributor truck HGY5318TFCS6 will be suitable for these work sites. It is equipped with HOWO chassis with 380HP engine, and is fit for spraying rubberized asphalt, modified asphalt, hot asphalt and emulsified asphalt. The chip seal truck equipped with a CCD camera for the operator to monitor the quantity of materials inside the hopper. The hopper is equipped with a lifting device for improving the stability of the operation and loading capability of the hopper, and the chip seal equipment is suitable for road construction in culverts, bridges and other limited height conditions.

Parameters:
Parameter Standard Details
Product Model HGY5318TFCS6
Chassis Model SX1319MC6Z1
Chassis Manufacturer Shaanxi Heavy Duty Automobile
Chassis Series M3000
Chassis Engine Model WP10H315E62
Chassis Engine Power (KW/PS) 276/375
Emission Standard National Standard Ⅵ
Wheel Base (mm) 1800 4575 1400
Total Weight (kg) 31000
Asphalt Tank Volume (L) 8500
Feed Bin Volume (m3) 14
Spray Width (mm) 4200
Asphalt Spray Volume (kg/m2) 0.2-3
Aggregate Spray Volume (L/㎡) 2-22
Asphalt Spray Precision 1%
Particle Size of Spraying Aggregate (mm) 3-30
Spray Medium Rubber asphalt, modified asphalt, hot asphalt, emulsified asphalt
Heating Method Automatic temperature control of conduction oil heating
Heating Rate of Asphalt (℃/h) 20
Optimum Construction Speed (km/h) 3-6
Asphalt Mixing Speed (r/min) 100 (adjustable)
Dimension (mm)(L×W×H) 11950×2550×3800

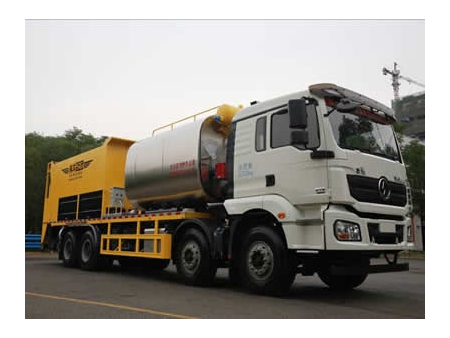

Chassis (HOWO Dump Truck Chassis)
  • High load
  • Optional High Standard Operator Cab
  • The gear can be switched between high speed and low speed. The fast reverse gear can increase the work efficiency.
Features:
  • The chassis manufactured by Shaanxi Heavy Duty Automobile is designed with high loading capacity. The high-standard operator cab provides comfortable working experience. The gear can be switched between high speed and low speed and the fast reverse gear can enhance the working efficiency.

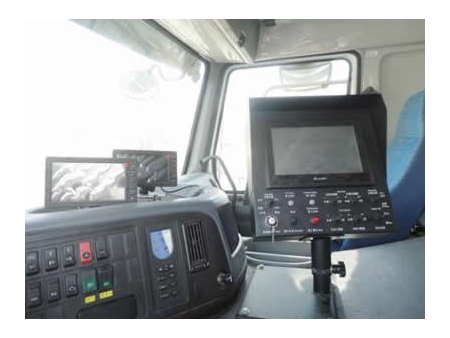

  • The feed bin features a HD camera with automatic dust removal function, allowing the operator to observe the aggregate chips level at any time.
  • The asphalt tank is equipped with 2 diesel burners to achieve high combustion efficiency and high heat rate. Besides, autoignition and automatic temperature control system are equipped for safe and stable operation.
  • The asphalt spray nozzle can achieve three layers spraying for more uniform spray.
  • The asphalt pump adopts JOHNSON brand from Italy for good performance of self-priming, wide range of rotation speed, good sealing performance and stable flow rate. As a result, the asphalt spraying quality can be guaranteed.
  • Each spray nozzle can guarantee the uniform spray and superior spraying effect.
  • The asphalt tank is equipped with mixing device. Besides, the asphalt tank can be used to store rubber asphalt.

Examples

  • Synchronous Chip Seal Construction on the New Highway in Guizhou
  • Synchronous Chip Seal Construction on the National Highway in Liaoning
  • Synchronous Chip Seal Construction on the Road in Shandong
