Hydraulic Impact Hammer
Medium Size (Max. Ram Weight 18000KG)
YC-11/YC-12/YC-14/YC-15/YC-16/Y-17/YC-18
Piling hammer
Our medium-size hydraulic impact hammers are well-designed piling tools, offering powerful performance. The stroke control device allows for adjustable working strokes within a specific range, providing precise and strong impact energy. With their weights ranging from 11000KG to 18000KG, our hammers are compatible with medium-sized piles. Customed hammers are available to meet your specific requirements.
Customizable Options
Sized of pile caps are customizable. Installation of rear clamps is optional.

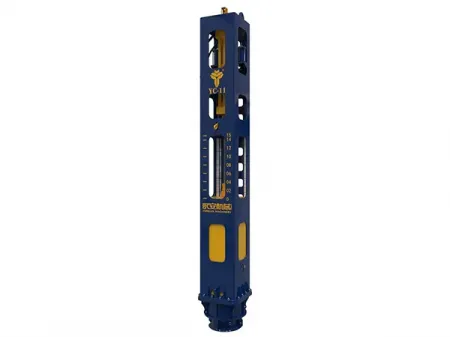

| Model | YC-11 |
| Unit | Metric |
| Impact Energy | 165 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 100/30 bpm |
| Ram Weight | 11000 kg |
| Dimensions (L×W×H) | 6790×1100×1290 mm |
| Weight | 16000 kg |
| Recommended Power Pack | 400P |

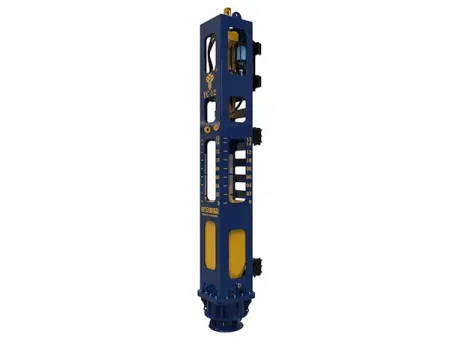

| Model | YC-12 |
| Unit | Metric |
| Impact Energy | 180 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/32 bpm |
| Ram Weight | 12000 kg |
| Dimensions (L×W×H) | 7100×1185×1300 mm |
| Weight | 18000 kg |
| Recommended Power Pack | 300P |

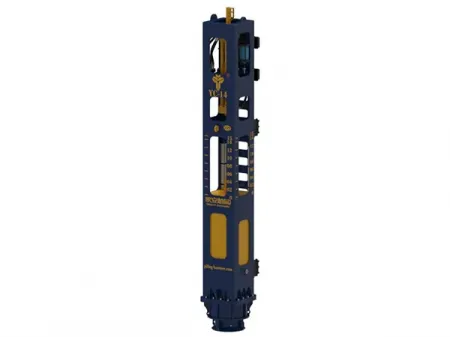

| Model | YC-14 |
| Unit | Metric |
| Impact Energy | 210 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 14000 kg |
| Dimensions (L×W×H) | 7510×1185×1300 mm |
| Weight | 20000 kg |
| Recommended Power Pack | 400P |

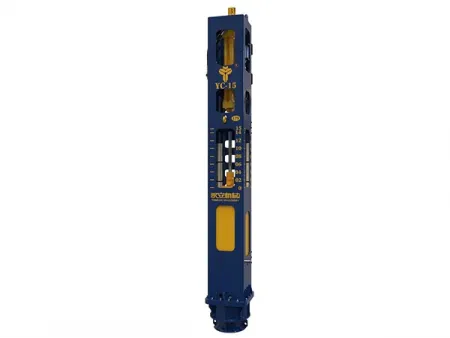

| Model | YC-15 |
| Unit | Metric |
| Impact Energy | 225 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 15000 kg |
| Dimensions (L×W×H) | 7250×1100×1290 mm |
| Weight | 22000 kg |
| Recommended Power Pack | 400P |

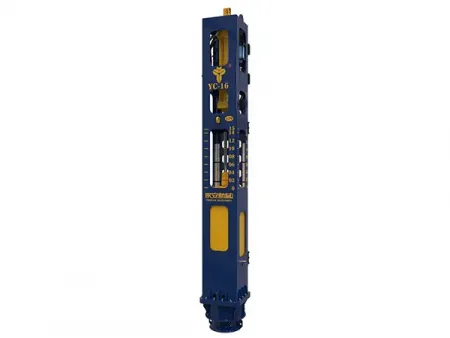

| Model | YC-16 |
| Unit | Metric |
| Impact Energy | 240 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 16000 kg |
| Dimensions (L×W×H) | 7760×1185×1300 mm |
| Weight | 22000 kg |
| Recommended Power Pack | 400P |

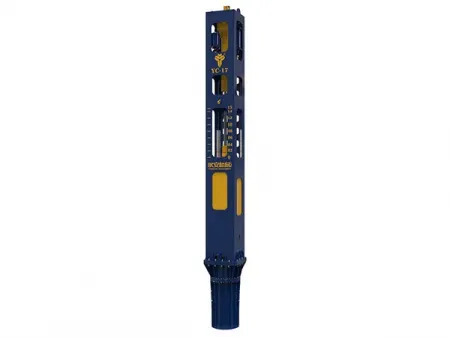

| Model | Y-17 |
| Unit | Metric |
| Impact Energy | 255 kNm |
| Working Stroke | 1500 mm |
| Impact Frequency | 70/30 bpm |
| Ram Weight | 17000 kg |
| Dimensions (L×W×H) | 7960×1185×1300 mm |
| Weight | 23000 kg |
| Recommended Power Pack | 400P |

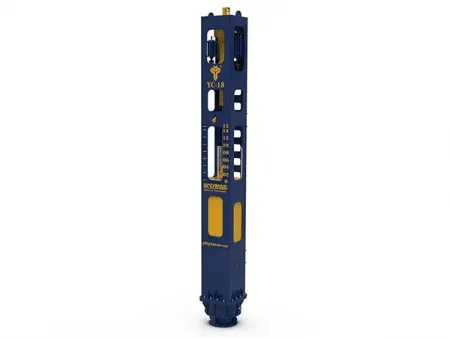

| Model | YC-18 | |
| Unit | Metric | |
| Impact Energy | 270 kNm | |
| Working Stroke | 1500 mm | |
| Impact Frequency | 70/30 bpm | |
| Ram Weight | 18000 kg | |
| Dimensions (L×W×H) | 8400×1185×1300 mm | |
| Weight | 24000 kg | |
| Recommended Power Pack | 400P | |

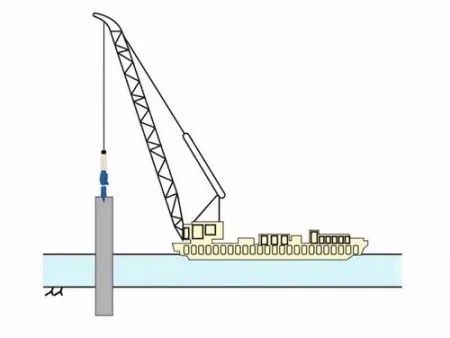

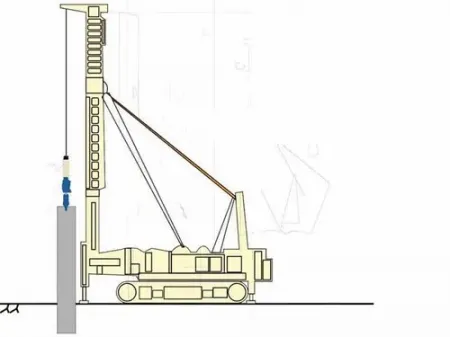

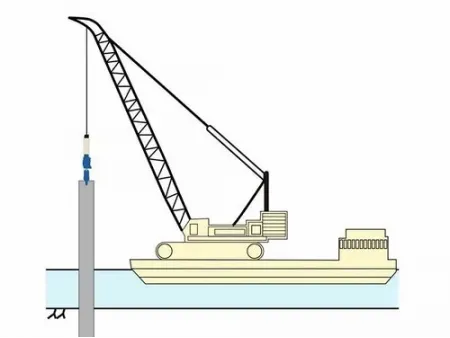

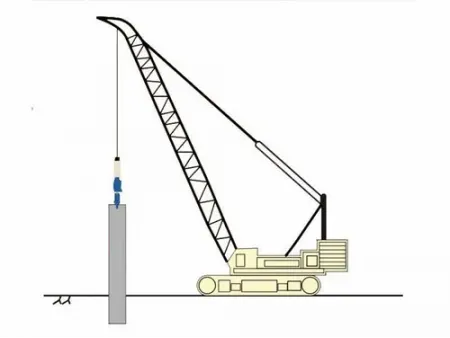

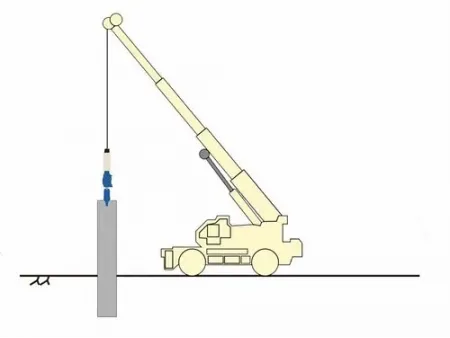

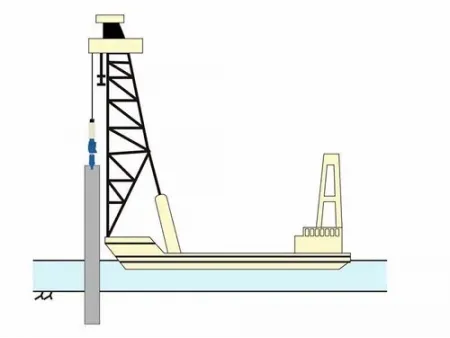

Mounting Options
Applications
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
Suitable Pile Types
- Steel Tubular Piles
- Concrete Piles
- Reinforced Concrete Piles
- Precast Concrete Piles
- H-Piles
- U-Piles
