Hydraulic Impact Hammer
Ultra-large Size (Max. Ram Weight 230000KG)
YC-110/YC-120/YC-130/YC-150/YC-180/Y-200/YC-210/YC-220/YC-230
Piling hammer
The ultra large size hydraulic impact hammers are exceptionally designed, ultra-powerful piling tools. They boast superior performance in both impact energy and hydraulic systems. These impact hammers are equipped with a top control device to prevent erroneous operations before reaching the designated position, protecting both the hanging equipment and the hammer. With hammer weights ranging from 110000KG to 230000KG, they can be customized to meet your specific needs. These impact hammers are ideal for handling extremely large-diameter piles, ensuring solid and stable foundations in large-scale projects.

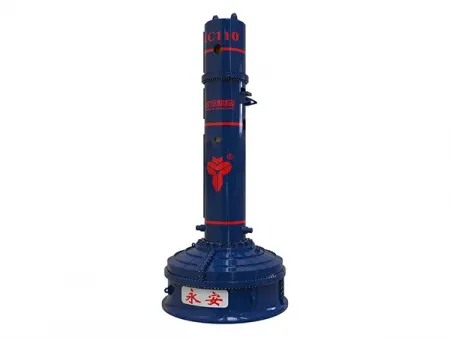

| Model | YC-110 |
| Unit | Metric |
| Impact Energy | 1870 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 60/22 bpm |
| Ram Weight | 110000 kg |
| Dimensions (L×W×H) | 11830×3230×2500 mm |
| Weight | 165000 kg |

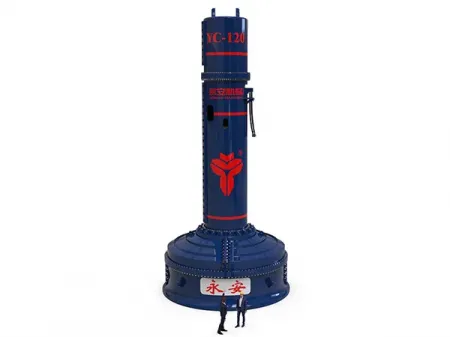

| Model | YC-120 |
| Unit | Metric |
| Impact Energy | 2040 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 60/22 bpm |
| Ram Weight | 120000 kg |
| Dimensions (L×W×H) | 12410×3200×2500 mm |
| Weight | 177200 kg |

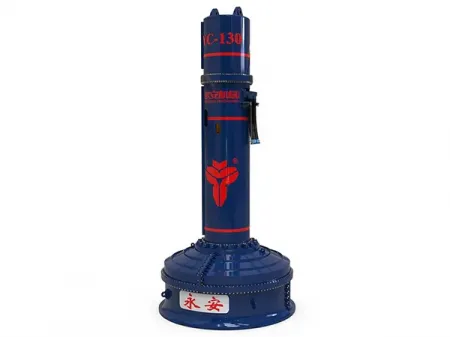

| Model | YC-130 |
| Unit | Metric |
| Impact Energy | 2210 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 130000 kg |
| Dimensions (L×W×H) | 12550×3260×2845 mm |
| Weight | 195000 kg |

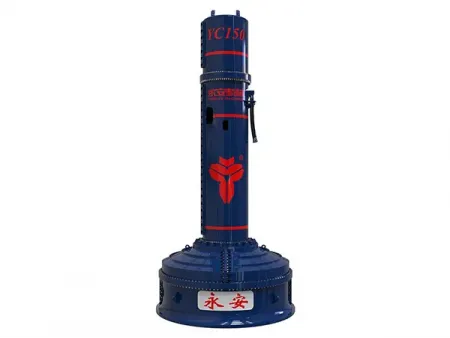

| Model | YC-150 |
| Unit | Metric |
| Impact Energy | 2250 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 150000 kg |
| Dimensions (L×W×H) | 12740×2765×2765 mm |
| Weight | 244500 kg |

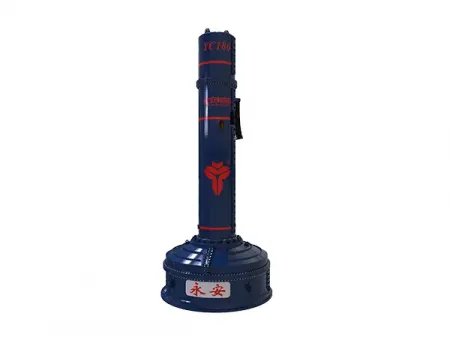

| Model | YC-180 |
| Unit | Metric |
| Impact Energy | 3060 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 180000 kg |
| Dimensions (L×W×H) | 14400×2765×2765 mm |
| Weight | 287000 kg |

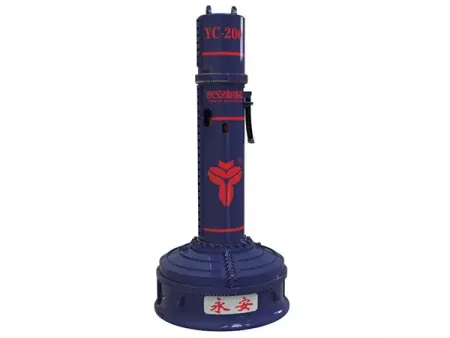

| Model | YC-200 |
| Unit | Metric |
| Impact Energy | 3400 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 200000 kg |
| Dimensions (L×W×H) | 15400×2765×2765 mm |
| Weight | 310000 kg |

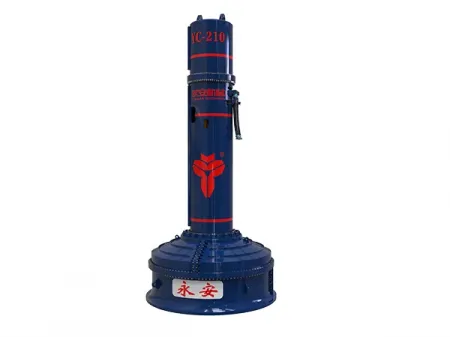

| Model | YC-210 |
| Unit | Metric |
| Impact Energy | 3600 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 210000 kg |
| Dimensions (L×W×H) | 17104×3424×2900 mm |
| Weight | 320000 kg |

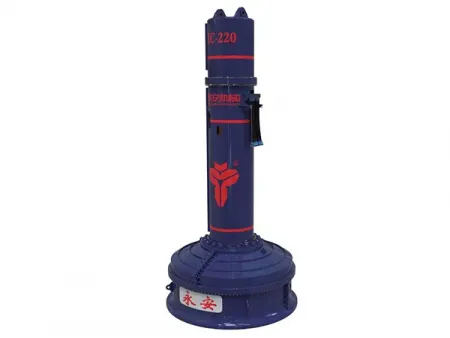

| Model | YC-220 |
| Unit | Metric |
| Impact Energy | 3740 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/20 bpm |
| Ram Weight | 220000 kg |
| Dimensions (L×W×H) | 16200×2765×2765 mm |
| Weight | 330000 kg |

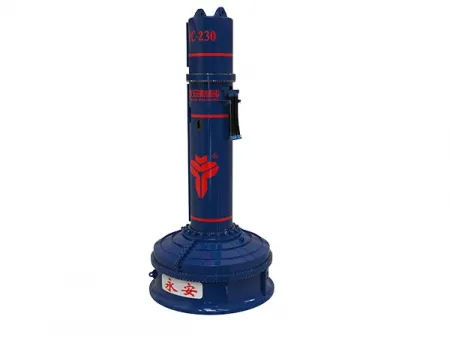

| Model | YC-230 |
| Unit | Metric |
| Impact Energy | 3900 kNm |
| Working Stroke | 1700 mm |
| Impact Frequency | 55/18 bpm |
| Ram Weight | 230000 kg |
| Dimensions (L×W×H) | 17893×3104×3419 mm |
| Weight | 343000 kg |
Mounting Options

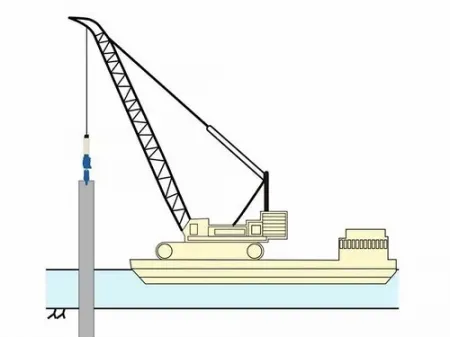

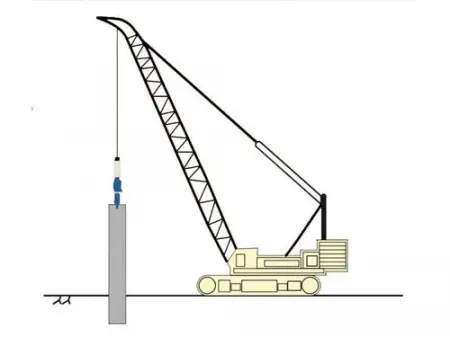

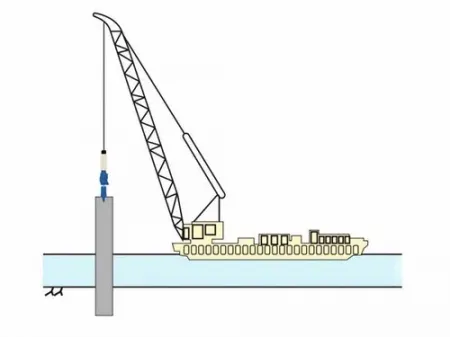

- Operated with cranes: impact hammers are suspended by cranes for piling.
- Installed on a guide frame for precise operation.

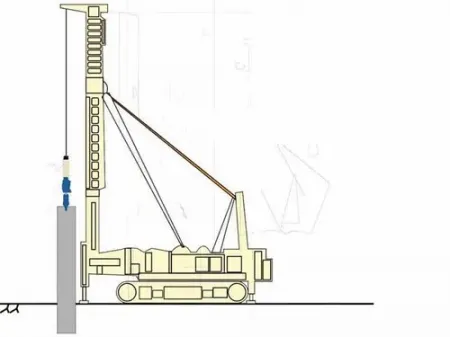

- Mounted on the lead system of an excavator for flexible and efficient piling.
Applications
- Civil Infrastructure Construction
- Sea Bridge Construction
Suitable Pile Types
- Steel Tubular Piles
- Concrete Piles
