Paint Prep Station
Preparation bays for sanding, priming, painting, sealing and cleaning operations in a ventilated environment
Paint prep station is designed to allow vehicle preparation without the need for repositioning. Tasks such as sanding, priming, painting and sealing can all be completed within the same workspace using our prep stations, creating a smoother and more efficient workflow. Multiple length, width and height options are available to meet different project requirements, enabling the paint prep stations to accommodate a wide range of custom sizes.
Your specific finishing needs, including filtration level, lighting arrangement, temperature control and airflow design, are fully considered in every Yokistar paint prep station to support cleaner, safer and more consistent preparation work.
This paint prep station is built with a simple design but is equipped a powerful 4 kW motor and fan system for reliable air extraction. A 4-meter air duct is included for convenient installation.

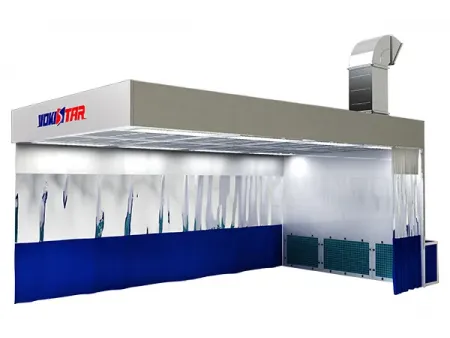

Air exhausted through rear cabinet
Air exhausted through basement

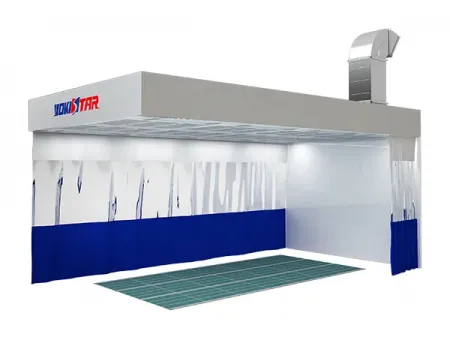

Air exhausted through pits
- 4KW belt drive motor
- Double intake centrifugal fan
- Air capacity: 15,000m³/h
- Air volume controlled by hand-operated dampr
- Control panel ewith motor ON/OFF and Emergency STOP
This is the most popular model in the paint prep station range. It features a single 4 kW belt-driven motor with a centrifugal fan for air extraction, a fully filtered plenum and manually movable curtains.
Air exhausted through rear cabinet
Air exhausted through basement
Air exhausted through pits
- Internal dimensions: 6,300 × 3,450 × 2,700 mm (L × W × H)
- Filtered plenum with 400mm height
- 8 flat light fixtures with four 36w Philips light, total 32pcs
- PVC curtains and rear galvanized steel panel
- Fiberglass filter and ‘M’-frame dry filter
- 4kW belt drive motor and double intake centrifugal fan
- Air capacity: 15,000 m³/h
- Belimo NMU230 10N electric damper for air circulation
- Control panel: motor ON/OFF, light ON/OFF, air control, emergency STOP
Air exhausted through rear cabinet
Air exhausted through basement
Air exhausted through pits
- Inside size: 6,300 × 3,450 × 2,700 mm (L × W × H)
- Filtered plenum with 400mm height
- 8 flat light fixtures with four 36w Philips light, total 32pcs
- PVC curtains and rear galvanized steel panel
- Fiberglass filter and ‘M’-frame dry filter
- Make up air unit: 4 kW belt-drive motor with double-intake centrifugal fan; air capacity: 15,000 m³/h; hand-operated damper for controlling fresh air volume
- Exhaust air unit: 4 kW belt-drive motor with double-intake centrifugal fan; air capacity: 15,000 m³/h; hand-operated damper for controlling exhaust air volume
- Control panel: motor ON/OFF, light ON/OFF, air control, emergency STOP
Air exhausted through rear cabinet
Air exhausted through basement
Air exhausted through pits
- Internal dimensions: 6,300 × 3,450 × 2,700 mm (L × W × H)
- Filtered plenum with 400mm height
- 8 flat light fixtures with four 36w Philips light, total 32pcs
- PVC curtains and rear galvanized steel panel
- Fiberglass filter and ‘M’-frame dry filter
- Riello G10 diesel burner with heating productivity of 100,000 Kcal/H
- 180kW stainless steel 1Gr18Ni9Ti (SUS304) heat exchanger
- Make up air unit: 5.5 kW internal motor with double-intake centrifugal fan; air capacity: 15,500 m³/h; hand-operated damper for controlling fresh air volume
- Exhaust air unit: 5.5 kW internal motor with double-intake centrifugal fan; air capacity: 15,500 m³/h; hand-operated damper for controlling exhaust air volume
- Control panel: temperature controller, hour meter, normal/heating temperature sanding switch, burner failure indicator, power switch, motor ON/OFF, left light switch, right light switch, emergency STOP
This series of paint prep stations is designed with two working areas, powered by a single 7.5 kW belt-drive motor and fan system for air extraction.
Air exhausted through rear cabinet
Air exhausted through basement
Air exhausted through pits
- Internal dimensions: 6,300 × 3,450 × 2,700 mm (L × W × H)
- Filtered plenum with 400mm height
- 16 flat light fixtures with four 36w Philips light, total 32pcs
- PVC curtains and rear galvanized steel panel
- Fiberglass filter and ‘M’-frame dry filter
- 7.5kW belt drive motor and double intake centrifugal fan
- Air capacity: 25,000 m³/h
- Belimo NMU230 10N electric damper for air circulation
- Control panel: A light, power indicator, fan running indicator, B light, A running switch, power switch, B running switch, emergency stop, A air controller, B air controller
- Air exhausted from rear cabinets with fiberglass filter
- Air exhausted from gratings with fiberglass filter
- Air exhausted from basement with fiberglass filter
- Standard internal dimensions is 6,300 × 3,450 × 2,700 mm (L × W × H)
- Custom dimensions can be designed and manufactured according to your specific requirements.
- Curtains are available in blue, red and white, with manual or automatic control options.
