Semi-Electric Aerial Order Picker
Request a Quote
SEP Material Handling Equipment
Manually pushed stock picker with 600×640 platform, 200kg capacity, up to 6050mm working height
The semi-electric aerial order picker is a material handling solution designed for efficient order picking in warehouses and supermarkets. Moving the order picker around is done by pushing it manually. Powered by a battery-operated lifting system, this picker allows operators to stand on the platform and control lifting and lowering from inside the operator cabin, significantly improving productivity during stock retrieval.
This manually pushed stock picker is able to handle up to a 200 kg load at a maximum picking height of up to 6050 mm.
- 200kg
- 6050mm

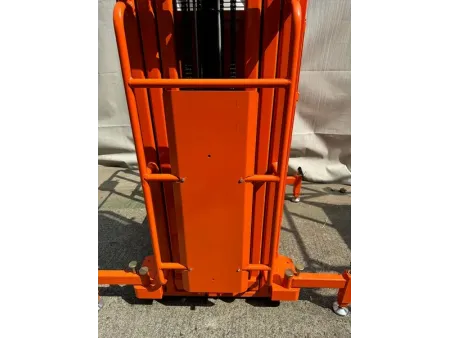

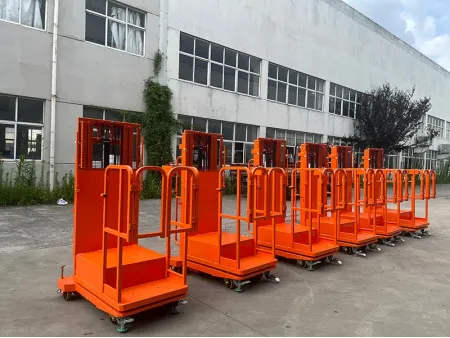

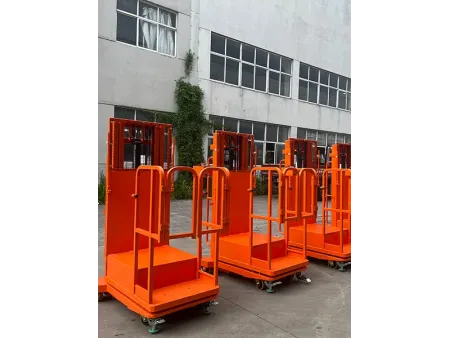

Photo Gallery

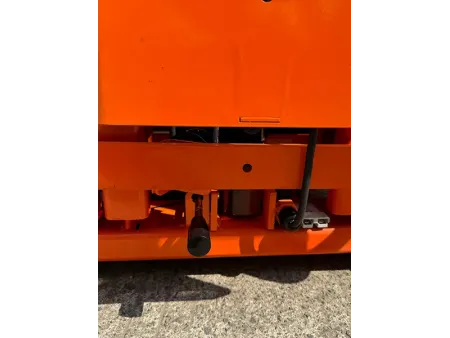

- Emergency lowering valve

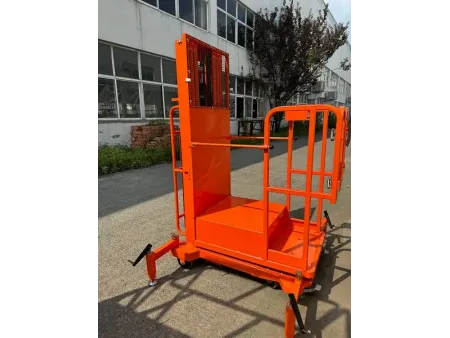

- Optional outriggers

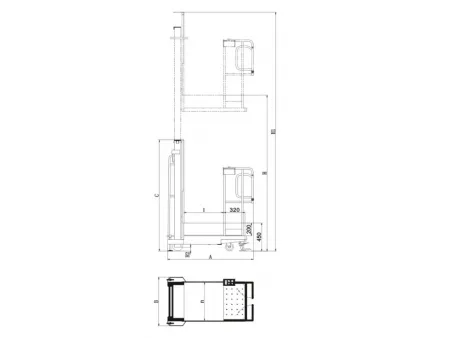

Specifications
| Model Number | |||||
| Max. Platform Height (H) | mm | 2720 | 3300 | 4000 | 4500 |
| Max. Working Height (H1) | mm | 4020 | 4900 | 5360 | 6050 |
| Ground Clearance (H2) | mm | 30 | 30 | 30 | 30 |
| Rated Lift Capacity | kg | 200 | 200 | 200 | 200 |
| Platform Size (l×n) | mm | 600×640 | 600×640 | 600×640 | 600×640 |
| Lifting Motor | V/kW | 12/1.6 | 12/1.6 | 12/1.6 | 12/1.6 |
| Aneroid Battery | V/Ah | 12/2020 | 12/2020 | 12/2020 | 12/2020 |
| Charger | V/A | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length (A) | mm | 1300 | 1300 | 1320 | 1320 |
| Overall Width (B) | mm | 850 | 850 | 850 | 850 |
| Overall Height (C) | mm | 1760 | 2040 | 1830 | 2000 |
| Overall Net Weight | kg | 270 | 320 | 380 | 420 |
Features
- Easy for a single operator to push and maneuver because of its lighweight and compact design
- Flexible and convenient operation makes it ideal for stacking and retrieving goods, and the perfect choice for warehouse and supermarket applications.
Standard Features
- Emergency stop button
- Battery indicator
- Voltage display
- Emergency lowering button
