Electric Aerial Order Picker with Hydraulic Steering
Request a Quote
FSEP-YZ Material Handling Equipment
Drivable stock picker with 600×700 platform, 300kg capacity, up to 6000mm working height
The hydraulic steering electric aerial order picker is a personnel lift designed to offer flexibility and efficiency across a wide range of indoor applications, including warehousing, retail outlets, and factory shelving systems. Its full electric drive enhances operational efficiency by allowing single-operator use, eliminating the need for two people to retrieve items from elevated positions. With its ultra-compact design but 300kg load capacity, this material handling equipment provides additional reach and a loading platform for effective retrieval and storage of goods, making it an indispensable tool for environments requiring a picking height of up to 6 meters.
- 300kg
- 6000mm
Specifications
| Model Number | ||||||
| Max. Platform Height (H) | mm | 2700 | 3000 | 4000 | 4500 | |
| Max. Working Height (H1) | mm | 4000 | 4450 | 5000 | 6000 | |
| Ground Clearance (H2) | mm | 45 | 45 | 45 | 45 | |
| Rated Lift Capacity | kg | 300 | 300 | 300 | 300 | |
| Platform Size | mm | 600×700 | 600×700 | 600×700 | 600×700 | |
| Max. Drive Speed (Platform Stowed) | km/h | 4 | 4 | 4 | 4 | |
| Max. Drive Speed (Platform Elevated) | km/h | 1.6 | 1.6 | 1.6 | 1.6 | |
| Min. Turning Radius | mm | 1600 | 1600 | 1690 | 1690 | |
| Max. Gradeability | % | 15-20 | 15-20 | 15-20 | 15-20 | |

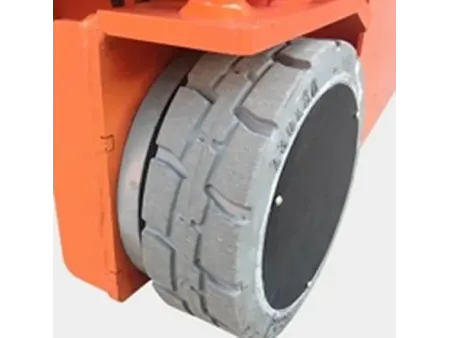

| Driving Wheel Size | mm | Ø230×80 | Ø230×80 | Ø230×80 | Ø230×80 | |
| Caster Size | mm | Ø230×80 | Ø230×80 | Ø230×80 | Ø230×80 | |
| Driving Motor | V/kW | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | 2×24/0.4 | |
| Lifting Motor | V/kW | 24/1.2 | 24/1.2 | 24/1.2 | 24/1.2 | |
| Aneroid Battery | V/Ah | 2×12/100 | 2×12/100 | 2×12/100 | 2×12/100 | |
| Charger | V/A | 24/15 | 24/15 | 24/15 | 24/15 | |

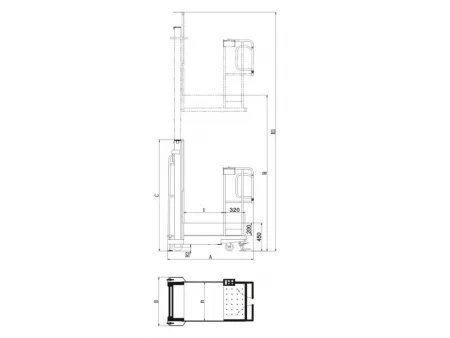

| Overall Length (A) | mm | 1540 | 1540 | 1620 | 1620 | |
| Overall Width (B) | mm | 760 | 760 | 760 | 760 | |
| Overall Height (C) | mm | 1900 | 2050 | 1920 | 2080 | |
| Overall Net Weight | kg | 600 | 620 | 830 | 850 | |
Features
- A spacious platform accommodates a variety of goods, enhancing adaptability for different operational needs.
- Tilt sensor ensures safety by preventing over-tilt during elevation.
- Built-in standard forklift pockets facilitate easy transportation of the order picker.
- Hydraulic steering system allows for precise movement and control without the need for outriggers, enabling the lift to travel while elevated.
- Packed with advanced features, this electric aerial order picker is a perfect addition to warehouses, offering enhanced productivity and safe operation.
