Semi-Electric Stacker
Request a Quote
SEM Material Handling Equipment
Straddle leg stacker with 1000/2000kg capacity, up to 1600mm lifting height
The semi-electric stacker combines electric lifting with manual maneuvering, offering an eco-friendly and efficient solution for pallet stacking and transport. This versatile stacker is widely used for elevated pallet stacking and movement in factories, warehouses, and logistics centers. It is effective in narrow aisles, mezzanines, and high-bay warehouses, where its quiet operation, maneuverability, and environmentally friendly design excel. The stacker ensures both safety and efficiency, making it a reliable aerialchoice for unitized pallet handling in demanding workspaces.
- 1000/2000kg
- 1600mm

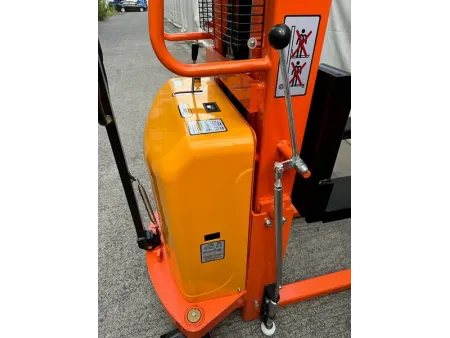

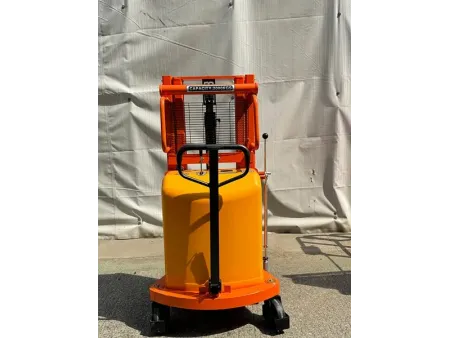

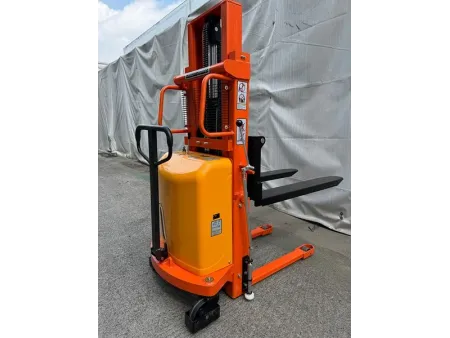

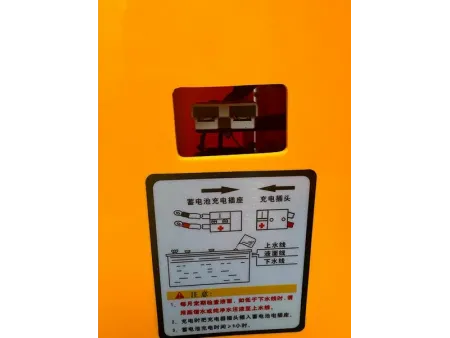

Photo Gallery

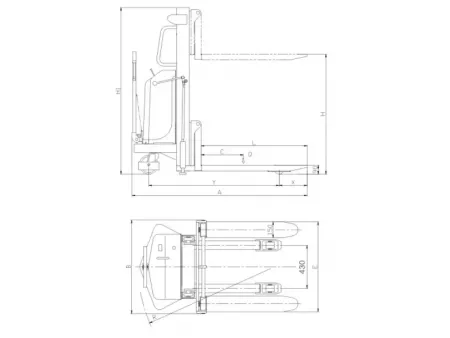

Specifications
| Model Number | SEM10-16 | SEM20-16 | |
| Rated Capacity (Q) | kg | 1000 | 2000 |
| Load Center (C) | mm | 400 | 400 |
| Max. Fork Height (H) | mm | 1600 | 1600 |
| Fork Length (L) | mm | 1150 | 1150 |
| Overall Fork Width (E) | mm | 300-850 | 320-850 |
| Min. Turning Radius (R) | mm | 1350 | |
| Wheel Base (Y) | mm | 1180 | |
| Front-Wheel Distance (X) | mm | 322 | |
| Lifting Motor | V/kW | 12/1.6 | |
| Battery | V/Ah | 12/2020 | |
| Charger | V/A | 12/15 | |
| Overall Length (A) | mm | 1800 | |
| Overall Width (B) | mm | 865 | |
| Overall Height (H1) | mm | 2060 | |
| Overall Net Weight | kg | 350 | 390 |
Features
- High-quality hydraulic pump delivers strong power and smooth operation with long-lasting performance, ensuring ease of use
- Heavy-duty C-type steel mast manufactured with advanced rolling processes for enhanced durability and safety
- Durable fork design made from integrally stamped steel plates, combining aesthetic appeal with excellent functionality
- Innovative rear axle structure improves the overall structural integrity of the stacker for more efficient performance.
- Foot-operated lightweight design reduces push and pull effort, offering greater flexibility and ease of use.
- Reliable braking system enhances safety during real-world operations, ensuring secure handling.
- Linkage structure extends the service life by distributing operational loads evenly, while simplifying maintenance and reducing downtime and operational costs.
