The high-speed crank press delivers 220 tons of pressing capacity with a 30 mm stroke and operating speeds of 150-500 strokes per minute. It features a 1900-2000×950 mm worktable, 1900×700 mm slide, and a 1400×250 mm scrap outlet, powered by a 45-kW main motor. With a rigid structure and efficient motion system, it ensures stable performance and high productivity for continuous stamping of rotors, stators, and precision hardware components.
Samples of Stamped Parts
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping

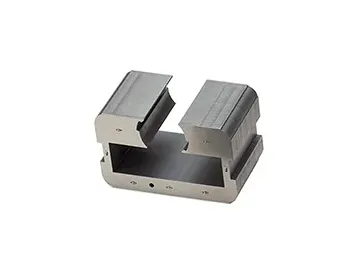

- Hardware component stamping
Crank Shaft Straight Side Press, DDH-220T
Technical Specifications
| Press capacity (kN) | 2200 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 150-500 |
| Shut height (mm) | 370-420 |
| Worktable size (bolster) (mm) | 1900×950×250 |
| Slide area (mm) | 1900×700 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1400×250 |
| Motor (kW) | 45 |
| Machine weight (ton) | 45 |
Crank Shaft Straight Side Press, DDL-220T
Technical Specifications
| Press capacity (kN) | 2200 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 150-500 |
| Shut height (mm) | 370-420 |
| Worktable size (bolster) (mm) | 2000×950×250 |
| Slide area (mm) | 1900×700 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1400×250 |
| Motor (kW) | 45 |
| Machine weight (ton) | 40 |
