Modular Desiccant Air Dryer - SPD Series (SPD06- SPD60)
The modular desiccant air dryer is a compact, lightweight, and highly adaptable system designed to efficiently clean and dry compressed air at flow rates ranging from 7 to 63 m³/min, suitable for various industrial applications. Its modular structure enables space-efficient installation, easy transport, and simplified maintenance, while ensuring consistent performance and reliable operation.
- Compressed air inlet temperature: 2~45℃
- Compressed air pressure: 0.7MPa, Max.1.0MPa (SPD01-SPD03 Max.1.6MPa)
- Pressure dew point: -20℃
- Oil content of inlet air: 0.08ppm (0.1mg/m³)
- Solid particle size: ≤60µm
- Average regenerative air flow: 15% of rated air flow

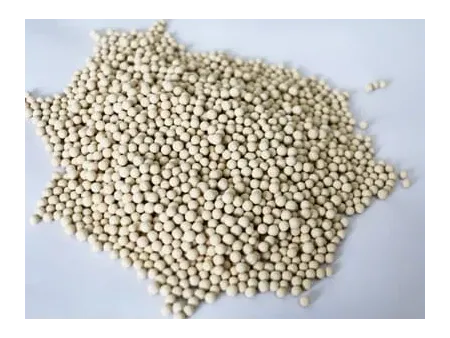

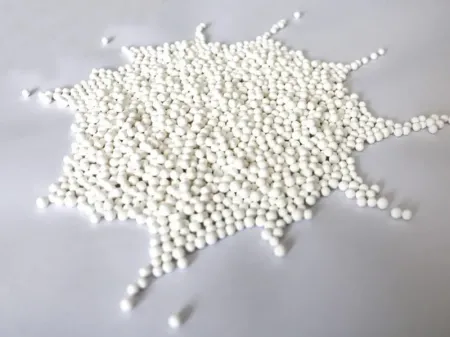

- Adsorbent desiccants: activated alumina molecular sieve
- Pressure drop: ≤0.025MPa (at 0.7MPa inlet pressure)
- Regeneration method: normal temperature
- Working mode: automatic switch between the two towers (4min/10min cycle mode), continuous operation
- Control method: 4~10min cycle adjustable
- Installation: indoor, allowing for installation without foundation
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Total weight (kg) | Dimensions (L×W×H) (mm) |
| | 7 | 220V/50Hz | 0.2 | RC1-1/2" | 155 | 695×445×1600 |
| | 10.5 | 220V/50Hz | 0.2 | RC2" | 212 | 857×445×1600 |
| | 14 | 220V/50Hz | 0.2 | RC2" | 270 | 1020×445×1600 |
| | 17.5 | 220V/50Hz | 0.2 | RC2" | 325 | 1180×445×1600 |
| | 21 | 220V/50Hz | 0.2 | RC2-1/2" | 385 | 1343×445×1600 |
| | 25 | 220V/50Hz | 0.2 | RC2-1/2" | 440 | 1505×445×1600 |
| | 28 | 220V/50Hz | 0.2 | DN80 | 500 | 1667×445×1600 |
| | 35 | 220V/50Hz | 0.2 | DN80 | 670 | 1990×445×1600 |
| | 42 | 220V/50Hz | 0.2 | DN100 | 770 | 2315×445×1600 |
| | 50 | 220V/50Hz | 0.2 | DN100 | 880 | 2640×445×1600 |
| | 55 | 220V/50Hz | 0.2 | DN125 | 1000 | 2970×445×1600 |
| | 63 | 220V/50Hz | 0.2 | DN125 | 1160 | 3287×445×1600 |
- Compact design with modular flexibility
Lightweight and space-saving, this desiccant air dryer allows convenient transport and installation. Each cartridge is under 30L, exempt from pressure vessel regulations, and achieves twice the drying performance of conventional twin-tower systems using only one-third the desiccant volume. The system design prevents channeling effects, ensuring consistent performance.
- High-performance adsorption
Uses a composite molecular sieve for enhanced adsorption efficiency with instantaneous absorption and discharge. Built with aluminum alloy, the housing resists corrosion and supports easy maintenance. Units can handle air flows from 0.5 to 30 m³/min and scale up through parallel configuration for large-capacity systems.
