ZVA Fuel Nozzle

Request a Quote

View All: http://tankerparts-en.com/2-6-4-fuel-nozzle.html

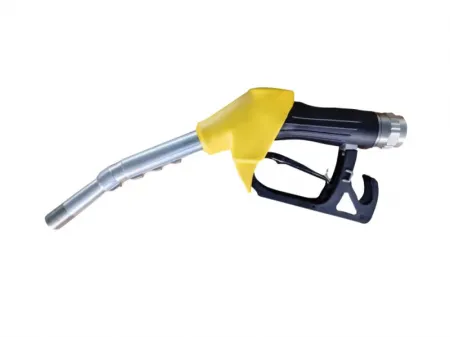

The DESEINOR ZVA nozzle is a high-grade fuel nozzle approved for both commercial and private use. With its industry leading product-longevity, the nozzle ensures exceptional quality and reliability.

The ZVA fuel nozzle offers a comprehensive range of models to meet specific requirements, including:

Automatic shut-off nozzles for diesel, gasoline, and biodiesel (e.g., Model 25 high-speed nozzle)
Manual nozzles for diesel and chemical applications
Specialized high-speed nozzles for gasoline and diesel
Custom-designed ZVA nozzle configurations

Key Features

Exceptional durability
ZVA fuel nozzles are built to last, with an average service life exceeding 25 years based on industry statistics.
Modular maintenance
Every component is designed for individual replacement, significantly reducing long-term maintenance costs.
Advanced impact resistance
Our proprietary internal structure minimizes fuel flow turbulence, effectively extending operational lifespan.
Automatic leak detector
The vacuum-activated piston mechanism instantly retracts upon fuel contact with the spout, eliminating spillage risks.

Specifications

Model	GY-ZVA80	GY-ZVA120
Inlet size	3/4”	1”
Thread	NPT/BSPP	NPT/BSPP
Compatible fluids	Diesel, gasoline, kerosene, methanol, etc.	Diesel, gasoline, kerosene, methanol, etc.
Body material	Aluminum alloy	Aluminum alloy
Connection	Female thread	Female thread
Color	Red, yellow, green, blue, black, grey	Red, yellow, green, blue, black, grey
Packaging	10pcs/pack	10pcs/pack
