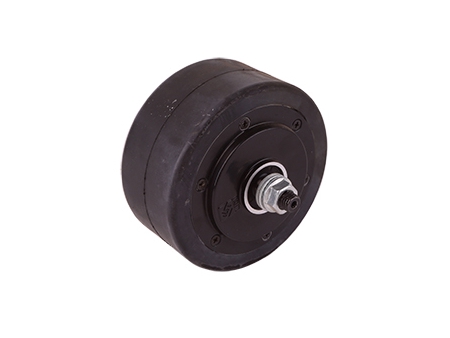

200-300W Drive Motor, PMDC Brushless Motor GF075AQH2
Request a Quote
Website: http://motors-manufacturer.com/2-8-200-300w-drive-motor-pmdc-brushless-motor-gf075aqh2.html
Your Motion
Application: sports recreational vehicles
Technical Specifications
| Rated Power (W) | 200 | 300 |
| Max. Power (W) | 300 | 400 |
| Rated Voltage(V) | 36 | 36 |
| No-load Current(A) | ≤1.5 | ≤1.5 |
| No-load Revolution (RPM) | 1200±4% | 1240±4% |
| Rated Torque (N•m) | 1.75 | 2.62 |
| Max. Torque (N•m) | 2.76 | 3.75 |
| Rated Revolution (RPM) | 1070±4% | 1090±4% |
| Rated Current(A) | ≤8.0 | ≤11.0 |
| Rated Efficiency (%) | ≥76 | ≥76 |
| Working Cycle (min.) | S2 | S2 |
| Insulation Class | F | F |
| Protection Level | IP65 | IP65 |

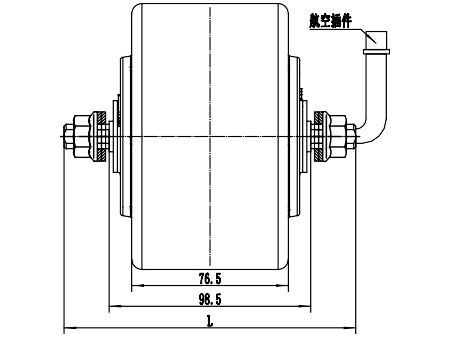

| Length (L/mm) | 130 | 143 |
Note: we can customize any brushless DC drive motors according to your application requirements and working conditions.
