120mm 400W/750W/900W Brushless DC Planetary Gear Motor
Request a Quote
Motor Specifications

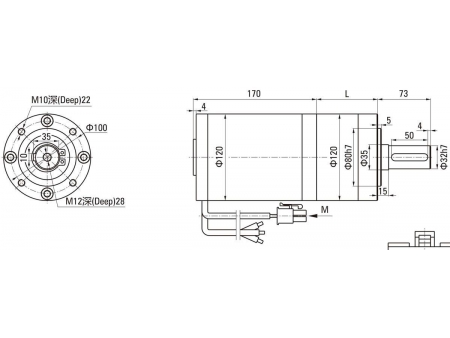

| Motor Model | Gearbox Model | Gear Ratio | Dimension (mm) | |
| Z120BLDPN | 120ZPN() | Stage 1 | 3.65～8.63 | 92.00 |
| Stage 2 | 14～58 | 127.0 | ||
| Stage 3 | 67～393 | 162.0 | ||
| Motor Model | Voltage V | Power W | No-load Current A | No-load SpeedRPM | Rated Current A | Rated Speed RPM | Rated TorqueN.m | Motor Life H |
| Z120BLDPN24400-30S | 24 | 400 | 3.0 | 3500 | 20.5 | 3000 | 1.273 | 5000 |
| Z120BLDPN48750-30S | 48 | 750 | 2.5 | 3600 | 18.5 | 3000 | 2.388 | 5000 |
| Z120BLDPN48900-30S | 48 | 900 | 2.5 | 3700 | 23.5 | 3000 | 2.865 | 5000 |
| Gear Ratio | 3.65 | 5.36 | 6.55 | 8.63 | 13.53 | 18.92 | 24.65 | 28.05 | 33.92 | 44.69 | 58.22 | 67.08 | 81.11 |
| Output Shaft Speed r/min | 822 | 560 | 458 | 348 | 222 | 159 | 122 | 107 | 89 | 67 | 52 | 45 | 37 |
| Allowance Torque N.m | 7.84 | 11.52 | 14.07 | 18.54 | 26.17 | 36.59 | 47.67 | 54.25 | 65.60 | 86.42 | 112.59 | 116.91 | 141.36 |
| Reduction Stage | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
| Gear Ratio | 91.36 | 102.88 | 118.98 | 127.74 | 145.36 | 165.64 | 191.56 | 231.61 | 301.68 | 392.98 |
| Output Shaft Speed r/min | 33 | 29 | 25 | 24 | 21 | 18 | 16 | 13 | 9.9 | 7.6 |
| Allowance Torque N.m | 159.23 | 179.31 | 207.37 | 222.63 | 253.34 | 288.69 | 300.00 | 300.00 | 300.00 | 300.00 |
| Reduction Stage | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
