Rotary Axis for Fiber Laser Cutting Head
Request a Quote
ACU03-PC-H01
5-axis machining center spindle designed for processing sheet metals, metal profiles and metal components
ACU03-PC-H01
5-axis machining center spindle designed for processing sheet metals, metal profiles and metal components
This 5-axis machining center rotary spindle is designed for fiber laser cutting heads. It is suitable to process sheet metals, structural metal profiles, and press-hardened (hot-stamped) steel with precision.
Specifications
| Applicable Laser Cutting Head | GM Series/GH Series |
| Rated Torque of A-axis/C-axis | 100N·m |
| Rated Speed of A-axis/C-axis | 37r/min |
| Positioning Accuracy of A-axis/C-axis | 1arcmin |
| Reduction Ratio of A-axis/C-axis | 81 |
| A-axis Movement Range | ±100° |
| C-axis Movement Range | ±200° |
| Repeated Positioning Accuracy of U-axis | < 0.01mm |
| Stroke of U-axis | 60mm |
| Max. Speed of U-axis | 250mm/s |
| Weight | 13.5kg |
Features

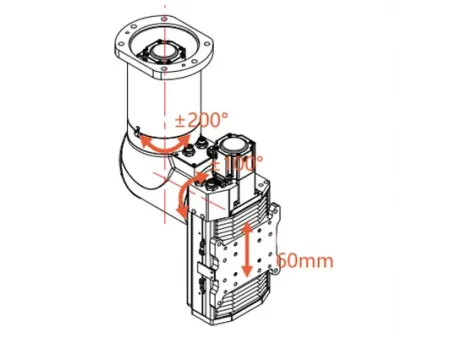

- A-axis rotation ±100°, C-axis rotation ±200°

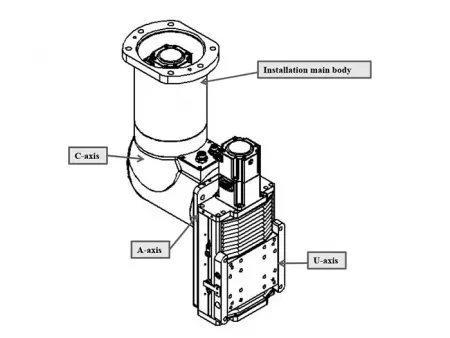

- Equipped with U-axis following module for precise contour tracking
- High-precision harmonic drive with servo motor
- Advanced machining quality for long-term stability
