Bowl Cutter (15L/25L/40L)

Bowl Cutter (15L/25L/40L)
Bowl Cutter (15L/25L/40L)
Bowl Cutter (15L/25L/40L)
Request a Quote

Meat Processing Equipment

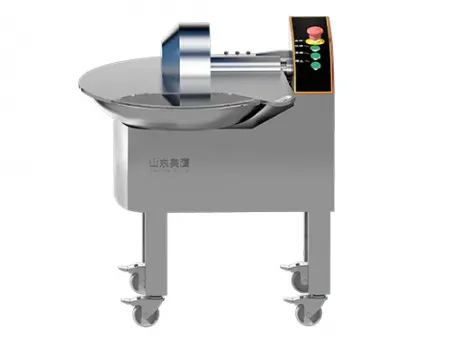

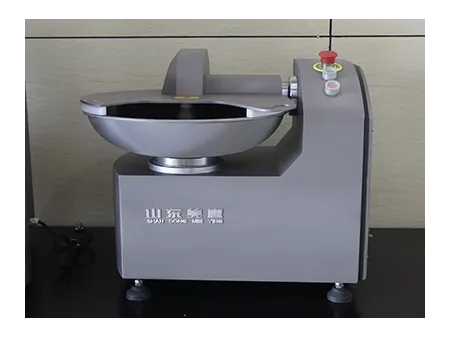

The bowl cutter is engineered for precise cutting and thorough blending of various types of meat, minced meat, and fat. It can also efficiently incorporate auxiliary ingredients such as vegetables, fruits, and seasonings into the meat paste, ensuring a uniform and consistent mixture. Three models are available: 15 L, 25 L, and 40 L.

The blade assembly is powered by a dual-speed 4/2-pole motor, offering rotation speeds of 1420 rpm and 2840 rpm. Operators can conveniently switch between low and high speeds via a manual control, depending on processing requirements and production stages. The bowl cutter is equipped with a reliable electrical control system, delivering stable performance with a low failure rate.

Specifications
Model Dimensions (mm) Bowl volume (L) Voltage (V) Power (kW) Max. chopping capacity (kg) Machine weight (kg)
MZB15 600×500×520 15 220 0.55 5 57
MZB25 810×680×1020 25 380 2.05 10 120
MZB40 1160×850×1050 40 380, 3P N 3.75 16 334
Features
  • Constructed entirely from 304 stainless steel with compact structure, making the machine easy to maintain and clean.
  • The bowl is powered by an independent motor, allowing smooth operation without affecting the cutting motor. For added safety, a lid interlock system automatically stops the machine when the cover is lifted, ensuring reliable protection for the operator.
  • An emergency stop button allows the operator to quickly halt operation in case of emergencies.
Meat Mincing Results
Vegetable Mincing Results
