Injection Adhesive Undercut Anchor
Chemical Anchors

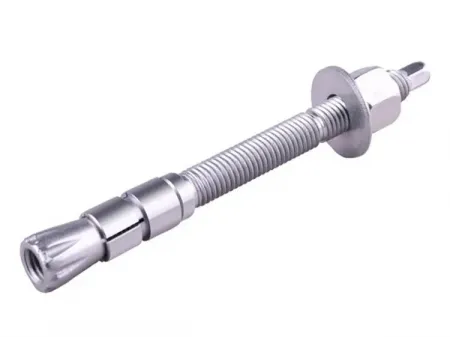

Undercut anchor bolt with injection anchoring adhesive
This anchoring system integrates a metal undercut anchor with MT500 injection adhesive, delivering a combination of mechanical interlock and chemical bonding. Designed to withstand high temperatures and certified for 100-year service life, it merges the strengths of chemical and mechanical anchors for dual-load transfer, providing exceptional load-bearing capacity, seismic resistance, and impact durability.
The modified epoxy adhesive offers strong adhesion, flexibility, and complies with non-toxic and hygienic standards. The system requires only a small drill hole diameter, minimizing structural damage during installation. All components have undergone rigorous performance testing to ensure long-term anchorage stability and reliability in critical applications.

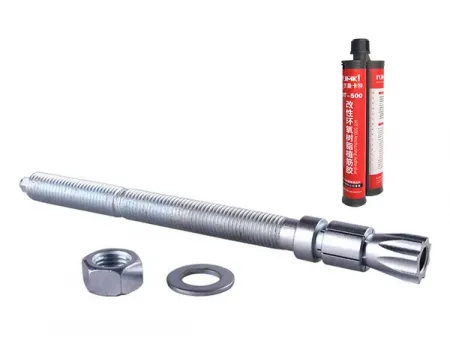

(MT-500 anchoring adhesive with undercut anchor bolt)
| Anchor rod size | Material class | Effective embedment depth (mm) | Tension load (kN) (nominal/design) | Shear load (kN) (nominal/design) | ||
| Cracked concrete | Non-cracked concrete | Cracked concrete | Non-cracked concrete | |||
| M8 | 5.8 | 80 | 18.3*/12.2 | 18.3*/12.2 | 7.3/6.1 | 7.3/6.1 |
| 8.8 | 25.1/13.9 | 29.3*/19.5 | 11.7/9.7 | 11.7/9.7 | ||
| 304 | 18.3*/6.4 | 18.3*/6.4 | 3.8/3.2 | 3.8/3.2 | ||
| 316 | 25.1/13.4 | 25.6*/13.7 | 8.3/6.9 | 8.3/6.9 | ||
| M10 | 5.8 | 90 | 29.0*/19.3 | 29.0*/19.3 | 11.6/9.7 | 11.6/9.7 |
| 8.8 | 29.8/19.9 | 41.8/23.2 | 18.6/15.5 | 18.6/15.5 | ||
| 304 | 29.0*/10.2 | 29.0*/10.2 | 6.1/5.1 | 6.1/5.1 | ||
| 316 | 29.8/16.5 | 40.6*/21.7 | 13.1/10.9 | 13.1/10.9 | ||
| M12 | 5.8 | 110 | 40.4/22.4 | 42.2*/28.1 | 16.9/14.1 | 16.9/14.1 |
| 8.8 | 40.4/22.4 | 56.5/31.4 | 27.0/22.5 | 27.0/22.5 | ||
| 304 | 40.4/13.4 | 42.2*/14.8 | 8.9/7.4 | 8.9/7.4 | ||
| 316 | 40.4/20.9 | 56.5/31.6 | 19.0/15.8 | 19.0/15.8 | ||
| M16 | 5.8 8.8 | 125 | 48.9/27.2 | 68.5/38.0 | 31.4/26.1 | 31.4/26.1 |
| 48.9/27.2 | 68.5/38.0 | 50.2/41.9 | 50.2/41.9 | |||
| 304 | 48.9/19.8 | 68.5/27.5 | 16.5/13.7 | 16.5/13.7 | ||
| 316 | 48.9/27.2 | 68.5/38.0 | 35.4/29.5 | 35.4/29.5 | ||
| M20 | 5.8 | 170 | 77.6/43.1 | 108.6/60.3 | 49.0/40.8 | 49.0/40.8 |
| 8.8 | 77.6/43.1 | 108.6/60.3 | 78.4/65.3 | 78.4/65.3 | ||
| 304 | 77.6/27.5 | 108.6/42.9 | 25.7/21.4 | 25.7/21.4 | ||
| 316 | 77.6/43.1 | 108.6/60.3 | 55.1/45.9 | 55.1/45.9 | ||
| M24 | 5.8 | 210 | 106.5/59.1 | 149.1/82.8 | 70.6/58.8 | 70.6/58.8 |
| 8.8 | 106.5/59.1 | 149.1/82.8 | 112.9/94.1 | 112.9/94.1 | ||
| 304 | 106.5/37.2 | 149.1/52.2 | 37.1/30.9 | 37.1/30.9 | ||
| 316 | 106.5/57.1 | 149.1/79.9 | 79.4/66.2 | 79.4/66.2 | ||
| M27 | 5.8 | 250 | 138.3/76.8 | 193.7/107.6 | 91.8/76.5 | 91.8/76.5 |
| 8.8 | 138.3/76.8 | 193.7/107.6 | 147.2/112.6 | 147.2/112.6 | ||
| 304 | 138.3/48.4 | 193.6/67.7 | 48.2/40.2 | 48.2/40.2 | ||
| 316 | / | / | / | / | ||
| M30 | 5.8 8.8 | 280 | 163.9/91.1 | 229.5/127.5 | 112.2/93.5 | 112.2/93.5 |
| 163.9/91.1 | 229.5/127.5 | 179.5/149.6 | 179.5/149.6 | |||
| 304 | 163.9/57.3 | 229.5/80.3 | 58.9/49.1 | 58.9/49.1 | ||
| 316 | / | / | / | / | ||
Our injection adhesive undercut anchors undergo extensive testing to ensure consistent performance and structural reliability across diverse applications. The following reports confirm their compliance with industry requirements:
- Tensile and Shear Strength Test Report – M10, M16, M20, M24
- Safety Certification Report – M10, M12 (Material Safety Data Sheet)
- Fatigue Resistance Report – M12 (Cyclic Load Test)
- Performance Verification Under Repeated Load Conditions
- Application-Specific Mechanical Performance Testing
