Waste Depack Machine

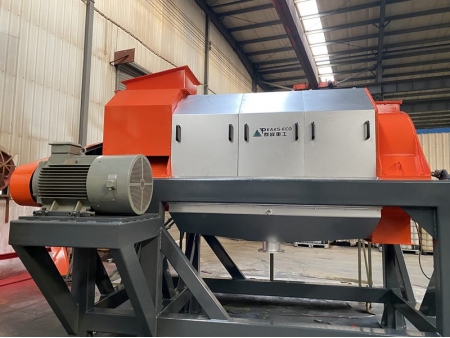

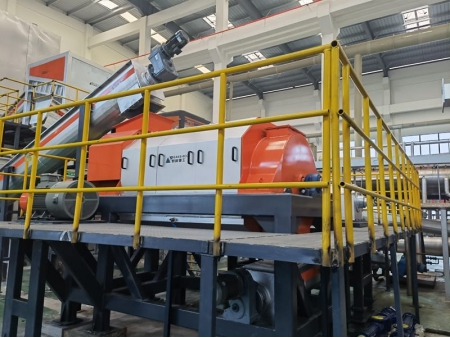

Waste depack machine(rotary drum separator) is a cutting-edge solution for the waste management industry, expertly designed to separate solids from liquid waste with high efficiency. Combining crushing, pulping, washing, and high-speed drum dehydration, this separating machine ensures effective slurry separation and optimal organic recovery, significantly reducing operational losses. Its adaptable design allows for on-site water addition to enhance processing performance based on real-time conditions.
The key aspect of its separation process is an internally fed drum screen separator, engineered for versatility across industrial and agricultural wastewater applications. This component offers outstanding abrasion resistance and efficient solids removal, all within a reliable framework.
The system is ideal for a wide range of uses, including food processing, manure thickening, and nutrient management, making it a comprehensive solution for sustainable waste and resource management.
Featuring a streamlined structure with an inlet pipe, sieve drum, screw conveyer, and brush roller, our waste depack machine(rotary drum separator) delivers high-performance results that help our clients achieve their sustainability goals.
- Our waste depack machine(rotary drum separator) features a dual-drive system where the active crushing shaft and the screening drum rotate independently. This design improves pulping and separation efficiency and includes a water spray self-cleaning mechanism for the screen.
- The main shaft is equipped with a 360° rotatable paddle impact device, featuring blades and chains made from high-strength, wear-resistant alloy steel. The shaft itself is coated with tungsten carbide for enhanced durability.
- With a processing capacity exceeding 30 tons per hour, the equipment is built to handle large volumes efficiently.
- Screen
- Main Shaft
| Machine dimensions (L×W×H) | 2860×1360×3300mm (adjustable) |
| Feeding size (L×W) (mm) | 770×620mm (adjustable) |
| Discharge size (L×W) (mm) | 700×390mm (adjustable) |
| Slurry inlet/outlet | DN200 or DN300 (adjustable) |
| Filter mesh hole diameter | 8mm (adjustable) |
| Machine weight | Approx. 8000kg |
| Drum power | 30 4kW |
| Drum speed | 150-400r/min |
| Mesh screen speed | 1-4r/min |
| Drum material | 304 stainless steel |
| Mesh screen material | 304 stainless steel |
| Material of paddle/cutter | High strength alloy steel |
| Crushing unit on shaft | Paddle cutter (paddle angle is adjustable) |
