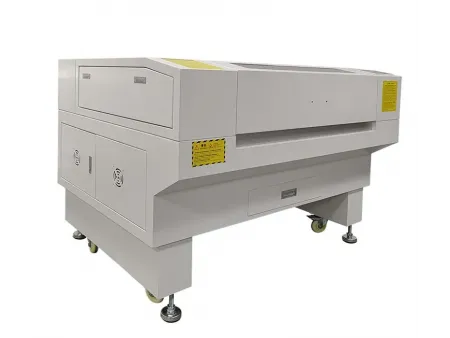

CO₂ Metal Tube Laser Cutting Machine
- Laser power 60W (customizable)
- Repeatability accuracy ≤±0.01mm
- Cooling method air cooling
- Machine weight 300kg
The CO₂ metal tube laser cutting machine is designed for precision and durability:
- High-quality metal body: Resistant to wear and corrosion, maintaining a clean appearance over time.
- Large transparent observation window: Allows real-time monitoring of the cutting process without opening the safety door, combining operational convenience with safety.
- Fully enclosed structure: Provides dust and shock protection, extending the machine's lifespan.
- Mobile wheels with foot cups: Enables flexible adjustment of the machine's position while ensuring stable and non-slip placement.

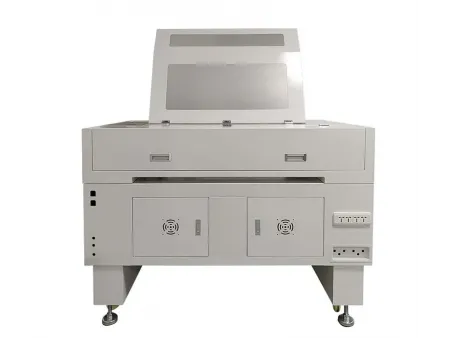

- Centered cutting area with open top cover: Facilitates convenient loading and unloading of materials.
Flexible OLED, film materials, acrylic, wood products, leather, ceramics.
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 60W (customizable)
- Working area 500×600mm (customizable)
- Repeatability accuracy ≤±0.01mm
- Transmission servo motor precision screw dual guide rail
- Positioning accuracy ≤±0.02mm
- Workpiece size accuracy ≤±0.05mm
- File format BMP, PLT, DXF, DST, JPG, CDR, PNG, DSB, RAW, etc
- Operation system RD control system
- Cooling method air cooling
- Power supply 220V±10%, 50Hz /110V±10%,60Hz
- Machine dimensions 1180×1200×1300mm
- Machine weight 300kg
- Package size 1600×1300×1500mm
- Package weight 330kg
Precision laser cutting control cabinet
Integrates an advanced CNC system with Leadshine servo motors, achieving a repeat positioning accuracy of up to ±0.01mm and a rapid idle speed of up to 60m/min. The precision gear rack or ball screw transmission system ensures stability even at high speeds.
Honeycomb aluminum plate worktable
Its porous structure minimizes material contact, preventing scratches on delicate materials like mirrored acrylic, while also enhancing airflow circulation and reducing cutting dust residue.
RF metal CO2 laser tube
Features a ceramic core with a sealed metal outer casing, preventing gas leakage and external contamination, ensuring long-term stable operation, and is suitable for industrial-grade continuous use. It boasts a lifespan of 20,000-40,000 hours and supports refillable gas for repeated use, significantly reducing replacement costs.
Ruida control system
A 7-inch high-definition touchscreen with a graphical interface supports drag-and-drop file import, allowing new users to master it within 1 hour. It visually displays cutting progress, equipment status, and error codes, facilitating technical team support and reducing downtime.

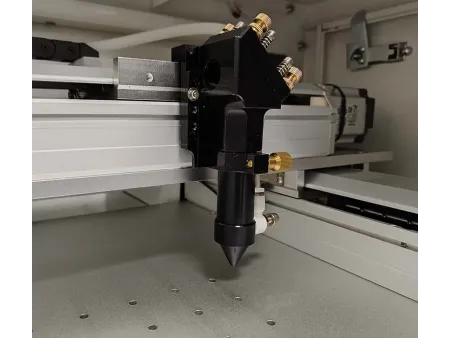

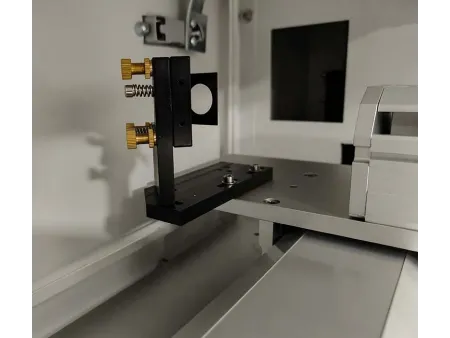

Optical components
The focusing lens can achieve a minimum spot diameter of 0.1mm, making it particularly suitable for fine cutting (e.g., mobile phone films, flexible OLEDs), with a cutting kerf width of only 0.05-0.2mm.
- Dual-head Laser System
- Rotary Worktable
- Automatic Feeding
- Air Pump
- Blower
- Reflective Lenses
