YMZD350

Dough Processing Equipment

Advantages of Automatic Dough Roller Machine

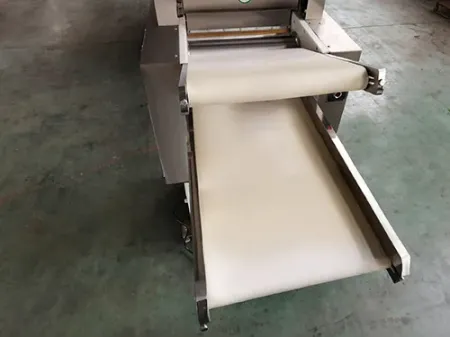

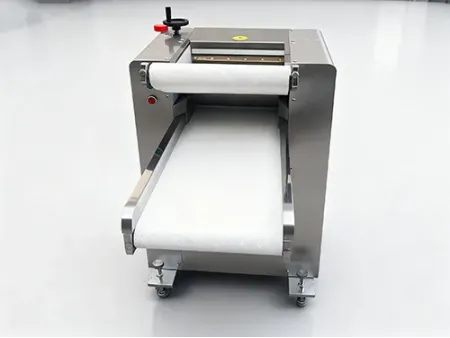

  • The automatic dough roller machine is equipped with a V-guide conveyor belt and specially treated rollers that work together to prevent belt deviation.
  • Dough conveying, folding, and rolling are performed automatically and continuously, eliminating the need for manual handling and ensuring both hygiene and safety.
  • The integrated stainless steel housing provides a clean, hygienic exterior, while the compact structure maximizes work efficiency.
  • The conveyor belt includes an automatic alignment system to minimize wear and extend service life.
  • All corners of the housing and protective covers are smoothly rounded for safe operation.
  • A rodent-proof mesh at the machine base enhances hygiene.
  • The roller is equipped with a standard emergency stop button and an oil-resistant rubber-sheathed power cable, fully complying with safety regulations.
Specifications
Model Material of housing Material of motor Certificate Dimensions (mm) Dough thickness range
(mm)
Capacity
(kg/h)
Voltage (V) Power (kW) Roller speed (r/min) Machine weight (kg)
YMZD350 201/304 stainless steel Copper CE/ISO 1200×630×1070 1-25 500 220/380 3 75 210
Features
  • The integrated stainless steel housing ensures cleanliness and hygiene.
  • Rounded edges on the protective covers enhance safety. The combination of V-guide conveyor belt and specially treated rollers prevents belt deviation.
  • Dough is fed from the top, and the conveyor efficiently transports it in and out, ensuring safe operation and high productivity
