Horizontal Type Air Handling Unit Manufacturer

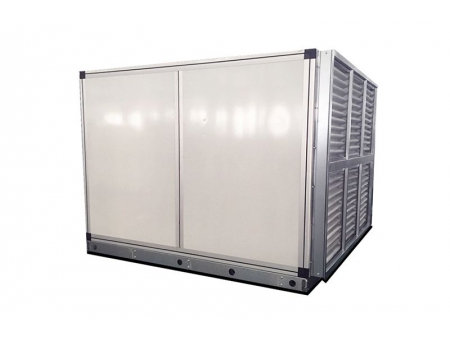

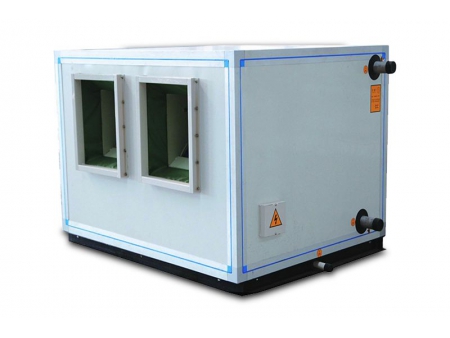

Horizontal Type Air Handling Unit

Request a Quote

View All: http://ruidonghvac.com/4-3-horizontal-air-cooling-unit/index.html

Horizontal air cooling units are used for ventilation and refrigeration in a number of different building types, ranging from industrial shopping malls, to shopping malls and everything in between.

Download

Technical Parameters

RFPL/W-/4H Series Return Air Condition

Model	Air flow (m³/h)	Rated cooling cap. (kW)	Rated heating cap. (kW)	Water flow (m³/h)	Water D.P. (Kpa)	ESP (Pa)	Motor power (kW)	Noise dB(A)	Water pipe DN	Drain pipe DN
020	2000	10.5	17.2	1.8	9.8	220	0.55	54	40	25
030	3000	15.7	25.7	2.7	13.6	220	0.75	55	40	25
040	4000	20.9	34.3	3.6	22.4	220	1.1	56	40	25
050	5000	26.2	42.9	4.5	23.6	220	1.5	58	40	25
060	6000	31.4	51.5	5.4	27.8	250	2.2	58	40	25
070	7000	36.6	60.1	6.3	32.3	250	2.2	58	50	25
080	8000	41.9	68.7	7.2	48.1	270	2.2	58	50	25
090	9000	47.1	77.2	8.1	43.5	270	2.2	59	50	25
105	10500	52.3	85.8	9.0	62.1	270	3.0	60	50	25
120	12000	62.8	103.0	10.8	48.5	270	3.0	61	50	25
135	13500	70.6	115.8	12.2	22.3	320	4.0	64	65	32
150	15000	78.5	128.7	13.5	62.5	320	4.0	66	65	32
180	18000	94.2	154.5	16.2	32.5	320	5.5	68	65	32
210	21000	109.9	180.2	18.9	37.3	350	7.5	68	65	32
240	24000	125.6	206.0	21.6	65.6	350	7.5	70	65	40
270	27000	141.3	231.7	24.3	58.2	350	7.5	71	65	40
300	30000	157.0	257.4	27.0	60.4	420	11.0	72	65	40
330	33000	172.7	283.2	29.7	75.1	420	11.0	72	80	40
350	35000	183.1	300.3	31.5	86.4	450	11.0	74	80	40
400	40000	209.3	342.3	36.0	71.4	450	11.0	75	80	40
450	45000	235.5	386.2	40.5	75.3	450	15.0	76	80	40
500	50000	261.6	429.1	45.0	81.7	450	15.0	76	80	40
Note	1.Cooling conditions:inlet air DB27℃，WB19.5℃，inlet water temperature 7℃/12℃
Note	2.Heating conditions:inlet air DB21℃，inlet water temperature 60℃/50℃

RFPL/W-/6H Series Return Air Condition

Model	Air flow (m³/h)	Rated cooling cap. (kW)	Rated heating cap. (kW)	Water flow (m³/h)	Water D.P. (Kpa)	ESP (Pa)	Motor power (kW)	Noise dB(A)	Water pipe DN	Drain pipe DN
020	2000	15.1	24.8	2.60	22	220	0.55	54	40	25
030	3000	22.7	37.2	3.90	35	220	1.1	55	40	25
040	4000	30.2	49.6	5.20	46	220	1.1	56	40	25
050	5000	37.8	62.0	6.50	43	220	1.5	58	40	25
060	6000	45.3	74..4	7.80	54	250	2.2	58	40	25
070	7000	52.9	86.8	9.10	24	250	2.2	58	50	25
080	8000	60.5	99.2	10.40	35	270	2.2	58	50	25
090	9000	68.0	111.6	11.70	38	270	3.0	59	50	25
105	10500	79.4	130.2	13.65	43	270	3.0	60	50	25
120	12000	90.7	148.7	15.60	46	270	3.0	61	50	25
135	13500	102.0	167.3	17.55	48	320	4.0	64	65	32
150	15000	113.4	185.9	19.50	51	320	5.5	66	65	32
180	18000	136.0	223.1	23.40	23	320	5.5	68	65	32
210	21000	158.7	260.3	27.30	26	350	7.5	68	65	32
240	24000	181.4	297.5	31.20	35	350	7.5	70	65	40
270	27000	204.1	334.7	35.10	42	350	11.0	71	65	40
300	30000	226.7	371.9	39.0	44	420	11.0	72	65	40
330	33000	249.4	409.0	42.90	53	420	11.0	72	80	40
350	35000	264.5	433.8	45.50	63	450	11.0	74	80	40
400	40000	302.3	495.8	52.0	54	450	15.0	75	80	40
450	45000	340.1	557.8	58.50	61	450	15.0	76	80	40
500	50000	377.9	619.8	65.0	67	450	18.5	76	80	40
Note	1.Cooling conditions:inlet air DB27℃，WB19.5℃，inlet water temperature 7℃/12℃
Note	2.Heating conditions:inlet air DB21℃，inlet water temperature 60℃/50℃

Features

Use of a lightweight aluminum alloy frame makes it convenient for onsite dismounting and maintenance.
Internal and external double layer polyurethane color steel panels avoid the formation of cold bridges on the shell while operating.
The horizontal air cooling units are operated and tested using dynamic and static equilibrium tests before delivery.
Closed rolling bearings function as the automatic adjusting center of gravity, automatic locking and anti-pushing. Pre-filling of lube oil makes it unnecessary for maintenance in normal conditions.
The filter is a cleanable, reusable plate type.
