Automatic Dumpling Making Machine (Stuffing Type)

Request a Quote

Website: http://foodmachines-en.com/4-4-1-automatic-meat-pie-making-machine.html

JGL120

Dough Processing Equipment

The automatic dumpling making machine is designed to form prepared dough and mixed fillings into dumplings. The machine allows adjustment of dough sheet thickness and filling quantity. Powered by a motor and chain drive, it eliminates the need for frequent belt adjustments. Standard features include an oil-resistant rubber-sheathed power cable and an emergency stop button, ensuring compliance with safety requirements.

Specifications

Model	Dimensions (mm)	Capacity (pcs/h)	Voltage (V)	Product weight (g/pc)	Power (kW)	Machine weight (kg)
JGL120	990×470×1120	3500-7200	380, 3P	16-18	1.5	132

Features

The machine offers high production efficiency and versatile functionality, allowing different dumpling shapes to be produced simply by changing the forming mold.
The automatic dumpling making machine imitates hand-made forming and produces dumplings weighing approximately 16–18 g, with adjustable dough thickness and filling volume.
The machine features protection safeguards against phase loss and overload, with an emergency stop button for enhanced safety.

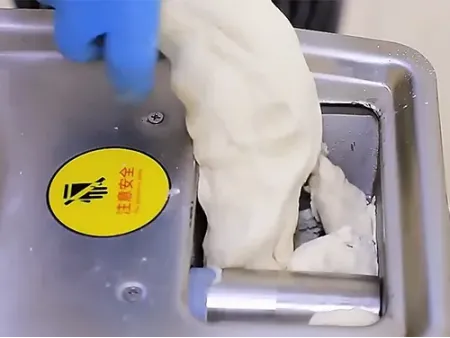

Dough feeding and filling sections feature a quick-release mechanism for convenient cleaning, while the discharge tray improves ease of use.
The machine is constructed entirely of stainless steel, with all parts that touch food made from 304 stainless steel to ensure safety and hygiene.
