Industrial tray washer for efficient and cost-effective cleaning of plastic trays used across a range of industries

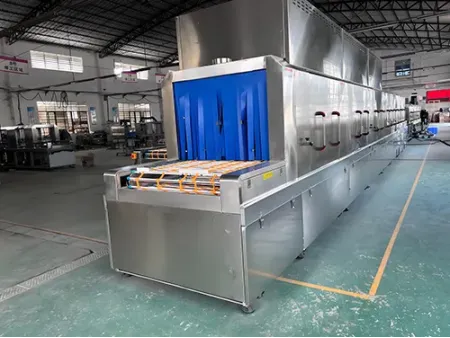

The automatic tray washing machine is specifically engineered to remove oil, dust, grease, and other debris from plastic trays, ensuring they remain clean and hygienic for reuse. Designed for logistics, warehousing, food processing, and manufacturing environments, the tray washing machine offers a reliable solution to maintain product quality and operational standards. With a cleaning capacity of 100–150 trays per hour, the machine improves efficiency by 3–5 times compared to manual washing, significantly reducing labor intensity and water waste.

Cleaning Process
  • Automated loading
  • Pre-wash
  • Rinsing
  • Washing
  • Blow-drying
  • Blow-drying
  • Drying
  • Automated unloading
Cleaning Results
Mold Tray
Before cleaning
After cleaning
Plastic Tray
Before cleaning
After cleaning
Specifications
Machine dimensions 9100×2660×1745mm
Cleaning efficiency 100-150pcs/hour (conveying speed 1-10m/min adjustable)
Water consumption 500L/h
Cleaning tank capacity 360L
Water pump Washing zone 1/3: 7.5kW
(Nanfang stainless steel high pressure pump, 100℃ temperature resistant, pressure ≥0.6MPa)
Washing zone 2: 18.5kW (high pressure centrifugal pump)
Drying system Air knife zone: 2.2kW×2 cooling air blowers  5.5kW×2 air pump
Heating zone: 2.2kW×2 high temperature fans 38kW heating tube (air knife design)

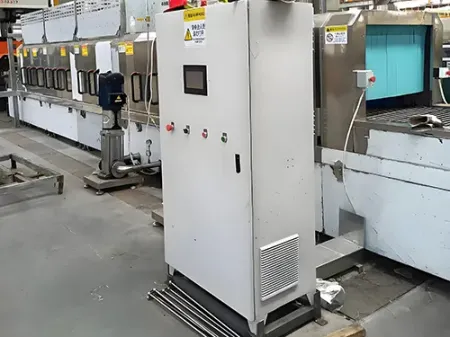

Control system Mitsubishi PLC  touch screen, supporting automatic water feeding, automatic temperature control, and fault alarm
Total power 146kW (full heating)
Power supply 380V/50Hz
Applicable tray size Max. size: 105.5×100×20cm Min. size: 100×45×14.5cm
Number of operators 2 persons
Key Advantages
  • 304 Stainless Steel Construction Main frame, covers, water tanks, and drainage plates are made of food-grade 304 stainless steel. Frame thickness ≥2mm; cover/tank thickness ≥1.5mm for corrosion resistance and hygiene.
  • Independent Water Recycling Tanks Each cleaning stage has a dedicated tank with multi-stage filtration. Filters are easy to remove and clean, with ≥80% water reuse.
  • High-Pressure 360° Cleaning Two 18.5KW pumps and multi-directional nozzles spray trays from all angles (top/bottom, sides, front/back), removing ≥99% of debris from gaps and surfaces.
