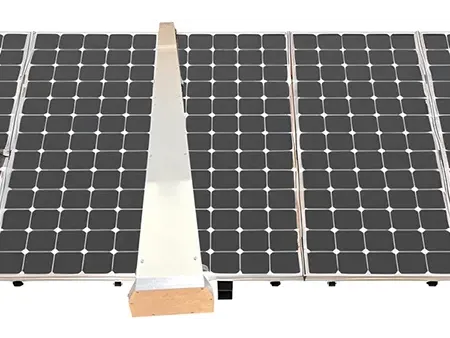

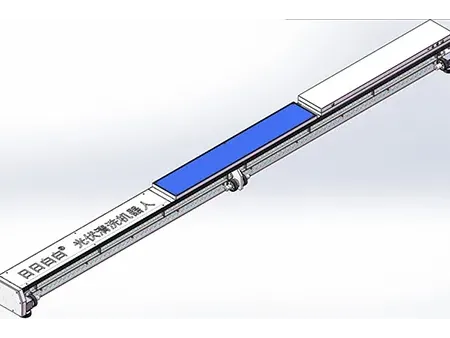

Semi-Automatic Solar Panel Cleaning Robot
Robotic solar panel cleaning machine for cleaning dust, dirt, bird droppings and other pollutants on solar panels
The semi-automatic solar panel cleaning robot supports both wet and dry cleaning, enabling efficient row-by-row automated operation. Compared with handheld cleaners, it delivers significantly higher cleaning speed and requires minimal manual intervention, making it ideal for semi-automated maintenance of large-scale solar farms.
Specifically designed for utility-scale PV plants, the semi-automatic solar panel cleaning robot effectively removes dust, bird droppings, rust, and other surface contaminants. By keeping panels clean, it helps maintain optimal energy output, reduces efficiency losses, and extends the service life of solar modules.
| Model | | |
| Applicable solar panel | Supporting single PV panel cleaning | Supporting double PV panel cleaning |
| Machine dimensions (W×H) | 350×250mm | 350×250mm |
| Machine length | Customized based on PV panel length | Customized based on PV panel length |
| Machine weight | 40-45kg | 85-90kg |
| Travel speed | 10-22m/min | 10-22m/min |
| Motor power | 100W | 200W |
| Ion battery | 24V/10Ah | 24V/20Ah |
| Working time | 3-5 hours | 3-5 hours |
| Water consumption | 270L/h | 330L/h |
| Working temperature | -10℃ (not freezing) to 50℃ | -10℃ (not freezing) to 50℃ |
| Inclination angle | 0° to 45° | 0° to 45° |
| Cleaning method | Wet/dry cleaning (dual mode) | Wet/dry cleaning (dual mode) |
| Control method | Smartphone APP, remote control, wireless radio control | Smartphone APP, remote control, wireless radio control |
- Efficient Cleaning: Supports both dry and wet cleaning for adaptable operation, thoroughly removing dust and grime to ensure maximum light exposure and boost power generation efficiency by 8%-30%.
- Smart Control: Dual control via mobile app and remote controller. Supports autonomous scheduling, remote operation, individual/group device management, real-time tracking, and cloud-based data monitoring.
- Safety & Reliability: Equipped with sensors for obstacle avoidance, anti-fall protection, self-diagnostics, and fault alerts. Weather-resistant design ensures stable operation in wind, rain, snow, and other harsh conditions.

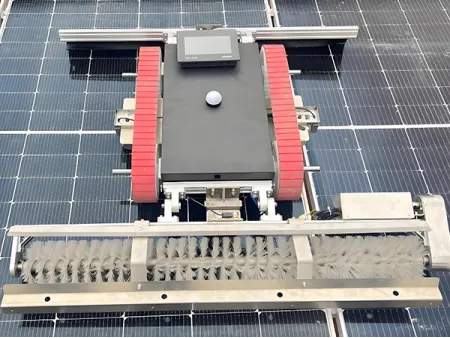

- All-Terrain Operation: Track-based models enable remote-controlled forward/backward movement and turning, adapting to complex environments for comprehensive cleaning without blind spots.
Technical team provides tailored designs based on array specifications (e.g., panel width, height, inclination angle, mounting structure) to ensure perfect compatibility with your PV plant layout.
