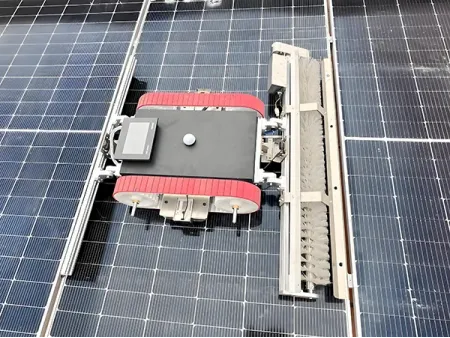

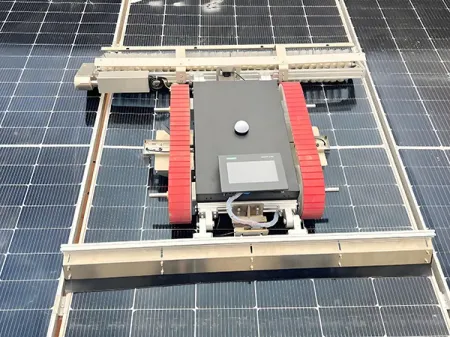

Solar Panel Cleaning Robot (Crawler Type)
Request a Quote
Remote control PV cleaning equipment for cleaning solar modules
The solar panel cleaning robot is designed for solar power plants, combining efficient cleaning, safety protection, all-terrain adaptability, and remote operation to minimize power loss caused by dust and dirt on PV panels. Suitable for large-scale solar farms, commercial and residential rooftops, as well as agricultural fields with solar panels, it streamlines panel maintenance while reducing operator fatigue and enabling access to areas that are difficult to reach with traditional equipment.
Specifications
| Model | JNX-L |
| Voltage | 24V |
| Brush rotation speed | 250r/min |
| Travel speed | 22m/min |
| Brush width | 1100mm |
| Working time | 3-4 hours |
| Cleaning method | Wet/dry cleaning |
| Inclination angle | ≤15℃ |
| Power supply | Ion battery |
| Max. water consumption | 20L/min |
| Working temperature | -20 to 50℃ |
| Brush material | Nylon bristles |
| Machine weight | 42.5-45kg |
Key Features
Durable anti-slip track
Nylon cleaning brush
Remote operation
Brushless DC motor
Configuration List
- Main body Aluminum alloy frame, lightweight design (weight ≤50kg), corrosion-resistant treatment
- Cleaning components Supports both wet and dry cleaning, using a water pump, nozzles, and nylon or dry brushes
- Power system Lithium battery system, brushless DC motor, and smart charger
- Navigation system Ultrasonic sensor, LiDAR (optional), and inertial navigation module
- Control system Industrial remote controller (supports customizable buttons)
- Safety devices Emergency stop button, audible/visual alarm, automatic power-off protection
- Accessories Replacement brushes, filters, screwdrivers, and portable maintenance stand
