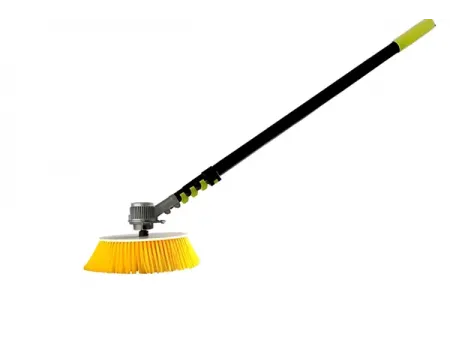

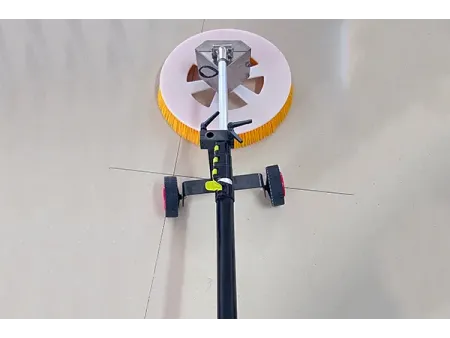

Single-head rotating solar panel brush with aluminum telescopic pole for cleaning photovoltaic panels
Electric solar panel cleaning brush is a tool designed specifically for the maintenance of solar panels. It features microfiber nylon composite brush bristles that provide both gentle contact and strong cleaning power, effectively removing stubborn stains without scratching the panel surface.
Regular use of a solar panel cleaning brush helps maintain panel performance by ensuring maximum light absorption and preventing long-term damage. Lightweight and easy to handle, the brush is suitable for both residential and commercial solar installations, making panel upkeep more efficient, safe, and cost-effective.
Specifications
General
| Model | JNX-D3 |
| Applications | Rooftop/ground-mounted solar power plants, and industrial and commercial distributed solar panels |
| Cleaning method | Wet/dry cleaning |
| Power supply | 24V ion battery |
| Voltage | DC 24V |
| Rated power | 100W |
Cleaning Performance
| Brush material | Microfiber nylon composite brush bristles (antistatic) |
| Brush width | 300mm |
| Cleaning efficiency | ≥200 m²/hour (brush width 0.6m) |
| Rotation speed control | 3-level adjustment (80/120/160 rpm) |
| Dust removal | ≥95% (dry cleaning) |
| Decontamination | ≥90% (water mist spraying) |
Drive Unit
| Motor type | Brushless DC motor (IP67 waterproof) |
| Torque output | 5N·m |
| Battery capacity | 20Ah ion battery (optional, working time 4-6 hours) |
| Charging power | 100W (optional) |
Structure & Operation
| Pole length | 5m (aluminum telescopic pole) |
| Brush weight | 3.2kg (with battery) |
| Inclination angle adjustment | 0-90° (stepless adjustment) |
| Waterproof | IP65 (motor) / IP54 (battery) |
| Operation temperature | -20℃ to 60℃ |
- Optional high-pressure spray module (requires external water source)
- Recommended cleaning frequency: 2-3 times per quarter to maintain power generation efficiency
- Bristle lifespan: ≈500 hours (replaceable separately)
