Split Flanges for Glass-Lined Equipment

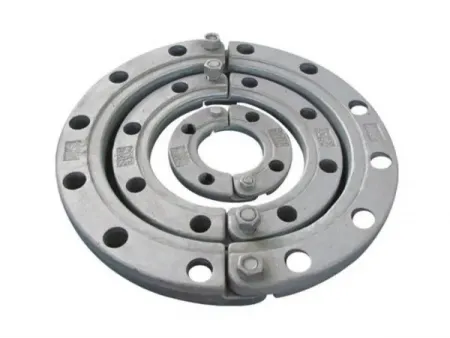

Specially designed to secure the glass-lined pipeline in glass-lined equipment, our split flanges come with special designs which make them different from the conventional flanges. The glass-lined reactor parts offer following advantages.
- The split flange boasts two halves assembled with bolts and nuts, so it enables application after fabrication.
- Special design ensures ease of maintenance and inspection operations.
- It is ideal for securing the glass-lined piping system of your reactor as coupled with flange pipes.

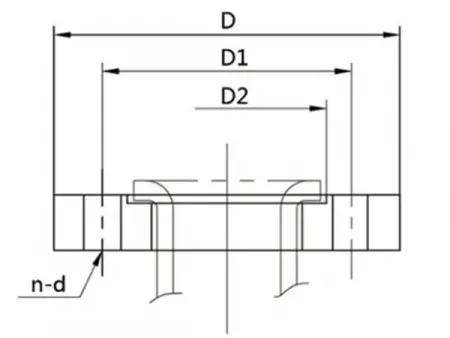

Technical Parameters of the Split Flange
| DN2 ------------- DN1 | PN0.6 | PN1.0 | ||||||
| D ( mm ) | D1 ( mm ) | D2 ( mm ) | n-d | D ( mm ) | D1 ( mm ) | D2 ( mm ) | n-d | |
| 50 | 140 | 110 | 92 | 4-14 | 165 | 125 | 104 | 4-18 |
| 65 | 160 | 130 | 112 | 4-14 | 185 | 145 | 124 | 8-18 |
| 80 | 190 | 150 | 130 | 4-18 | 200 | 160 | 135 | 8-18 |
| 100 | 210 | 170 | 150 | 4-18 | 220 | 180 | 160 | 8-18 |
| 125 | 240 | 200 | 180 | 8-18 | 250 | 210 | 190 | 8-18 |
| 150 | 265 | 225 | 204 | 8-18 | 285 | 240 | 214 | 8-22 |
| 200 | 320 | 280 | 260 | 8-18 | 340 | 295 | 270 | 8-22 |
| 250 | 375 | 335 | 314 | 12-18 | 395 | 350 | 324 | 12-22 |
