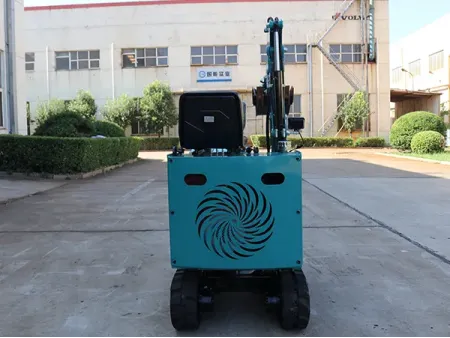

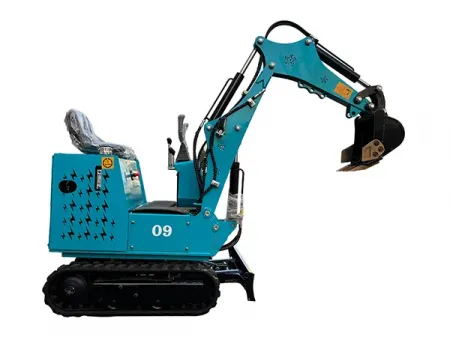

KE09 Electric Crawler Excavator
Request a Quote
Battery-electric compact excavator with operating weight of 800kg
- Bucket capacity
0.02m³ - Chassis width
730mm - Track length
1100mm - Gradeability
40°
Specifications
| Model | KE09 |
| Certification | ISO, CE, EPA, EURO5 |
| Bucket capacity | 0.02m³ |
| Chassis width | 730mm |
| Track length | 1100mm |
| Gradeability | 40° |
| Chassis ground clearance | 380mm |
| Track width | 150mm |
| Overall dimensions (L×W×H) | 2000×730×1880mm |
| Transport length | 2200mm |
| Battery capacity | 126Ah |
| Battery voltage | 72V |
| Charging time | 6h-8h |
| Decibels within 1 meter | < 55dB |
| Engine | Lithium battery |
| Motor power | 4kW |
| Power consumption per hour | 1kWh |
| Max. digging height | 2500mm |
| Max. dumping height | 1780mm |
| Max. digging depth | 840mm |
| Max. digging radius | 2500mm |
| Turning radius | 1100mm |
| Bucket excavating force | 11.5kN |
| Operating weight | 800kg |
| Configurations | Valve: Beifang Brand Pump: Xingzou Brand Load sensitive system |
Features
- Lithium battery power system that delivers clean, energy-efficient operation with zero emissions, reducing fuel costs
- Dual-lever front control system, easy to operate
- Grease-fitted pivot pins
- The bulldozer blade is widened and thickened
- Compact body with zero tail design that allows easy maneuvering in confined or indoor workspaces
