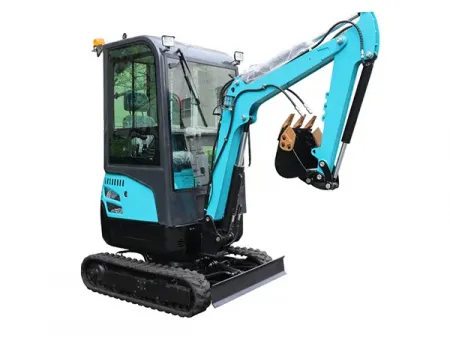

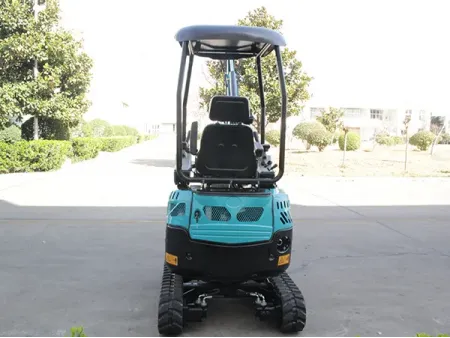

KE18 Electric Crawler Excavator
Request a Quote
Battery-electric compact excavator with operating weight of 1500kg
- Bucket capacity
0.03m³ - Chassis width
1100mm - Track length
1300mm - Gradeability
40°
Specifications
| Certification | ISO, CE, EPA, EURO5 |
| Bucket capacity | 0.03m³ |
| Chassis width | 1100mm |
| Track length | 1300mm |
| Gradeability | 40° |
| Chassis ground clearance | 385mm |
| Track width | 180mm |
| Overall dimensions (L×W×H) | 2200×1100×2200mm |
| Transport length | 2200mm |
| Battery capacity | 200Ah |
| Battery voltage | 72V |
| Charging time | 6h-8h |
| Decibels within 1 meter | < 55dB |
| Engine | Lithium battery |
| Motor power | 6kW |
| Power consumption per hour | 1kW/h |
| Max. digging height | 2700mm |
| Max. dumping height | 1900mm |
| Max. digging depth | 1910mm |
| Max. digging radius | 3280mm |
| Turning radius | 1636mm |
| Bucket excavating force | 15kN |
| Operating weight | 1500kg |
| Configurations | Valve: Beifang Brand Pump: K.Jun Brand Double gear pump |
Features
- Lithium battery power system providing clean, energy-efficient performance with zero emissions and lower operating costs
- Hydraulic pilot operation
- Optional swing boom
- The track length of 41 sections increases the ground contact area and makes walking more stable
- Widened and thickened bulldozer blade to enhance durability and stability
- Ergonomic operation lever
