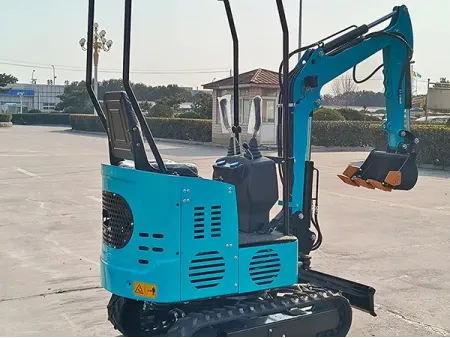

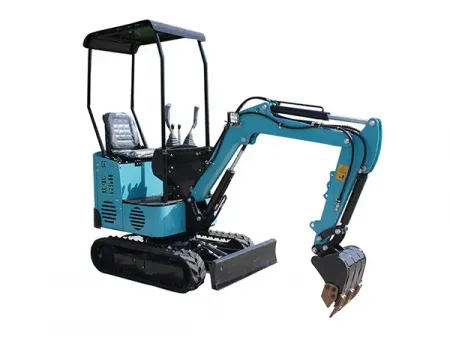

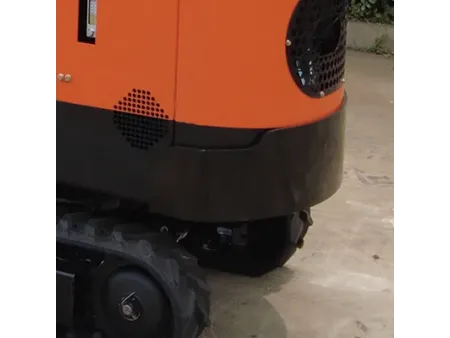

KE12/12Plus Electric Crawler Excavator
Request a Quote
Battery-electric compact excavator with operating weight of 1000kg
- Bucket capacity
0.025m³ - Chassis width
930mm - Track length
1250mm - Gradeability
40°
Specifications
| Certification | ISO, CE, EPA, EURO5 |
| Bucket capacity | 0.025m³ |
| Chassis width | 930mm |
| Track length | 1250mm |
| Gradeability | 40° |
| Chassis ground clearance | 385mm |
| Track width | 180mm |
| Overall dimensions (L×W×H) | 2200×930×2200mm |
| Transport length | 2200mm |
| Battery capacity | 126Ah |
| Battery voltage | 72V |
| Charging time | 6h-8h |
| Decibels within 1 meter | < 55dB |
| Engine | Lithium battery |
| Motor power | 4kW |
| Power consumption per hour | 1kW/h |
| Max. digging height | 2550mm |
| Max. dumping height | 1850mm |
| Max. digging depth | 1650mm |
| Max. digging radius | 2400mm |
| Turning radius | 1190mm |
| Bucket excavating force | 11kN |
| Operating weight | 1000kg |
| Configurations | Valve: Beifang Brand Pump: Xingzou Brand Double gear pump |
Features
- Koop 192F diesel engine and B&S gasoline engine
- Self-contained counterweight that adds additional body weight to improve the stability of the vehicle
- All pivot points feature grease fittings for smoother movement and easier maintenance
- Reinforced wider and thicker bulldozer blade for greater durability
- Timer and voltmeter
- Hammer cut-off valve made of durable cast steel, ensuring wear resistance, strong mechanical performance, and prevention of oil leaks or drips
