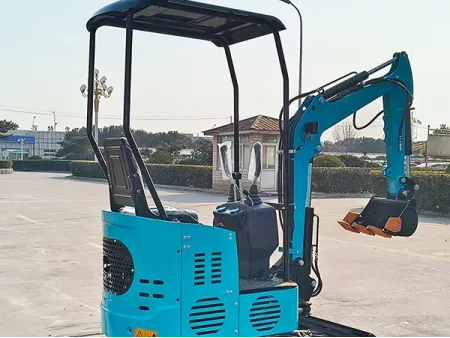

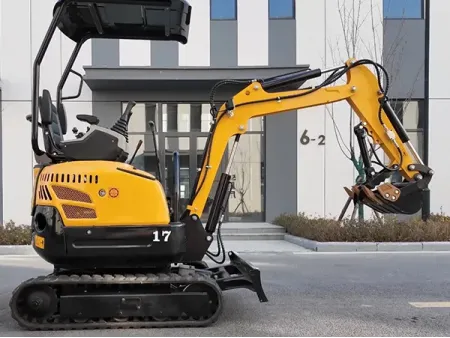

KV12/12Plus Mini Crawler Excavator

Request a Quote

Website: http://sutemachinery-en.com/5-2-2-mini-crawler-excavator.html

Specifications

Model	KV12-A	KV12-B	KV12-C
Bucket capacity	0.025m³	0.025m³	0.025m³
Chassis width	930mm	930mm	930mm
Track length	1250mm	1250mm	1250mm
Gradeability	20°	20°	20°
Chassis ground clearance	385mm	385mm	385mm
Track width	180mm	180mm	180mm
Fuel tank capacity	3.5L	3.5L	3.5L
Overall dimensions (L×W×H)	2200×930×2200mm	2200×930×2200mm	2200×930×2200mm
Transport length	2200mm	2200mm	2200mm
Hydraulic flow	18L/min	18L/min	18L/min
Hydraulic tank capacity	13L	12L	13L
Working pressure	16MPa	16MPa	16MPa
Engine	KOOP 192F diesel engine (Euro 5)	KOOP 192F diesel engine (Euro 5)	KOOP 192F diesel engine (Euro 5)
Engine power	12hp	12hp	12hp
EPA engine optional	Briggs & Stratton gasoline/13.5hp	Briggs & Stratton gasoline/13.5hp	Briggs & Stratton gasoline/13.5hp
Max. digging height	2550mm	2550mm	2550mm
Max. dumping height	1850mm	1850mm	1850mm
Max. digging depth	1650mm	1650mm	1650mm
Max. digging radius	2400mm	2400mm	2400mm
Turning radius	1190mm	1190mm	1190mm
Bucket excavating force	11kN	11kN	11kN
Operating weight	850kg	850kg	850kg
Configurations	Valve: Beifang Brand Pump: Xingzou Brand Double gear pump	Valve: Beifang Brand Pump: Xingzou Brand Double gear pump	Valve: Beifang Brand Pump: Xingzou Brand Double gear pump

Features

Powerful performance with multiple engine options
Standard model is equipped with a Koop 192 engine (12 HP)
Optional: EPA and Euro V compliant engines such as Briggs & Stratton are also available for export markets, meeting international emission standards
Reinforced bulldozer blade widened and thickened for higher durability
Grease-fitted pins for smooth movement and easy maintenance
Timer and voltmeter
Optional swing boom
Hydraulic pilot operation equipped with a safety lock and operator armrest for smoother, safer, and more comfortable control
