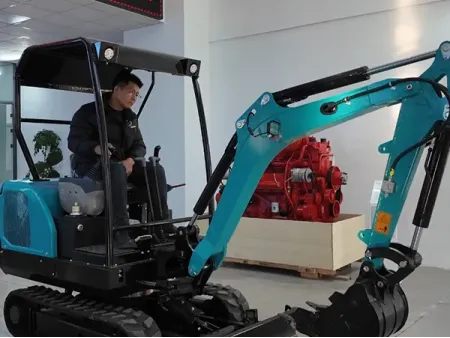

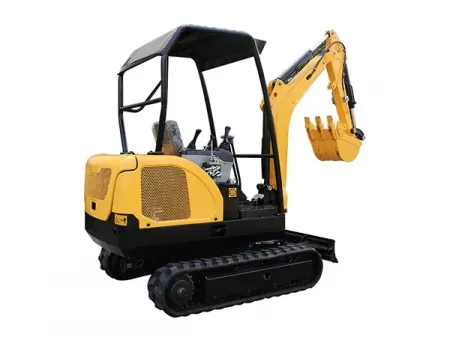

KV25 Mini Crawler Excavator
Compact excavator with operating weight of 2000kg
- Bucket capacity
0.04m³ - Chassis width
1100-1400mm - Track length
1220mm - Gradeability
20°
| Model | KV25 |
| Bucket capacity | 0.04m³ |
| Chassis width | 1100-1400mm |
| Track length | 1220mm |
| Gradeability | 20° |
| Ground clearance | 385mm |
| Track width | 230mm |
| Fuel tank capacity | 16L |
| Overall dimensions (L×W×H) | 3700×1400×2203mm |
| Transport length | 3700mm |
| Hydraulic flow | 50L/min |
| Hydraulic tank capacity | 16L |
| Working pressure | 16MPa |
| Engine | Laidong 385 diesel engine |
| Engine power | 18.4kW |
| Optional engine | YANMAR 3TNV80 (optional) |
| Max. digging height | 3200mm |
| Max. dumping height | 2290mm |
| Max. digging depth | 2241mm |
| Max. digging radius | 3060mm |
| Turning radius | 1645mm |
| Bucket excavating force | 16kN |
| Operating weight | 1900kg |
| Configuration - valve | Beifang Brand |
| Configuration - pump | Xingzou Brand |
| Hydraulic system | Piston pump load sensitive system |
Standard Laidong 385 diesel engine provides consistent power and durability
Optional Yanmar 3TNV80 engine ensures lower emissions and higher fuel efficiency
Hydraulic pilot control system
Upper-mounted hydraulic cylinder
The cylinder is positioned above the bulldozer blade to prevent impact damage during operation, effectively extending the component’s lifespan.
Hydraulic pilot control with safety lock
Integrated safety lock to prevent accidental operation, ensuring safer control and smoother performance
Adjustable Track Width
Track width can be adjusted to enhance stability, ground contact, and adaptability to different terrains and job requirements.
Optional swing boom
Improves maneuverability for close-wall digging and complex working environments, offering greater flexibility in confined spaces
