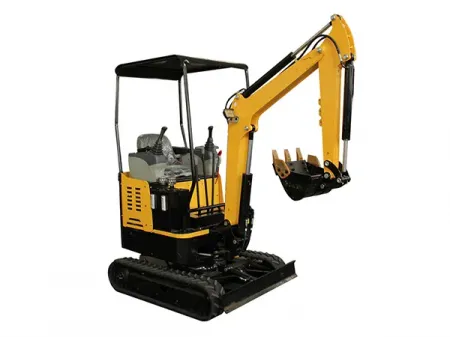

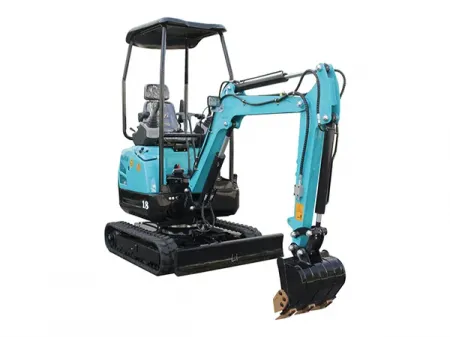

KV18/18PLUS Mini Crawler Excavator
Request a Quote
Compact excavator with operating weight of 1500kg
- Bucket capacity
0.04m³ - Chassis width
1100-1400mm - Track length
1220mm - Gradeability
20°
Specifications
| Model | | |
| Bucket capacity | 0.03m³ | 0.03m³ |
| Chassis width | 1100mm | 1160mm |
| Track length | 1030mm | 1250mm |
| Gradeability | 20° | 20° |
| Ground clearance | 385mm | 385mm |
| Track width | 180mm | 230mm |
| Fuel tank capacity | 10L | 10L |
| Overall dimensions (L×W×H) | 2200×1100×2200mm | 2200×1100×2200mm |
| Transport length | 2200mm | 2200mm |
| Hydraulic flow | 40L/min | 40L/min |
| Hydraulic tank capacity | 12L | 12L |
| Working pressure | 16MPa | 16MPa |
| Engine | Kubota D722 (EURO 5 & EPA) | Kubota D722 (EURO 5 & EPA) |
| Engine power | 10.3kW | 10.3kW |
| Max. digging height | 2700mm | 2700mm |
| Max. dumping height | 1900mm | 1900mm |
| Max. digging depth | 1910mm | 1910mm |
| Max. digging radius | 3280mm | 3280mm |
| Turning radius | 1636mm | 1636mm |
| Bucket excavating force | 15kN | 15kN |
| Operating weight | 1400kg | 1500kg |
| Configuration - valve | Beifang Brand | Beifang Brand |
| Configuration - pump | K-Jun Brand | K-Jun Brand |
| Gear pump | Double gear pump | Double gear pump |
Features
Equipped with Kubota D722 engine that ensures reliable performance, fuel efficiency, and compliance with international emission standards
Hydraulic pilot control system
Optional swing boom
Enhances working flexibility, allowing for wall-side excavation and operations in confined spaces
Zero-tail design enables efficient maneuvering in tight or restricted work environments
Reinforced thickened dozer blade
Intuitive control panel
