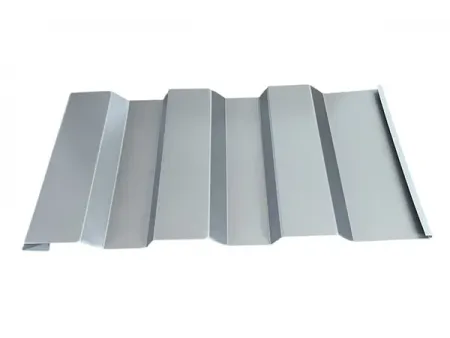

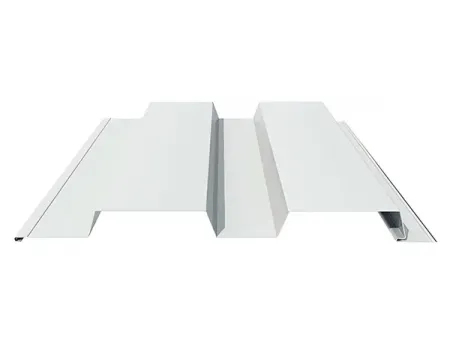

Concealed Fastener Metal Wall Panels
YX22-150-450

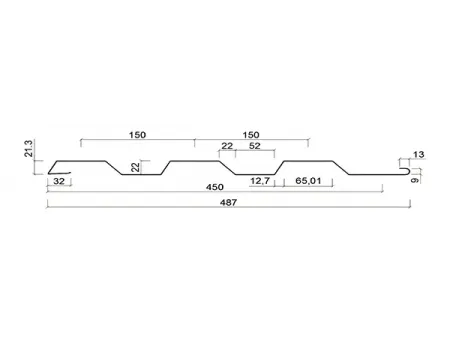

22mm depth×450mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings
- Effective cover width: 450mm
- Overall width of sheet: 600mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
- Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
These cladding panels are designed with a hidden fastening system, which means the fixings are concealed behind the surface rather than exposed. This keeps the exterior appearance clean and uninterrupted while also protecting the panels from early wear caused by drilled holes or exposed screws. The symmetrical trapezoidal rib design not only strengthens the panel but also gives the façade a modern and balanced look. Thanks to the concealed joint method, the surface remains flat and uniform, making it especially suited for projects where aesthetics and long-term durability are equally important.
Widely used in industrial plants, commercial complexes, office buildings, hotels, retail centers, and exhibition venues, offering both protection and a clean architectural finish.
- Wall applications
Used on flat façades or the exterior of industrial workshops, or places that require a clean and uniform finish - Supporting framework
The panels are fixed to a subframe made from either galvanized steel (≥1.5 mm) or aluminum profiles (≥2 mm). To ensure stability, the fixing surface of each profile should be at least 50 mm wide, with spacing no more than 1200 mm. - Structural substrate
The panels can be installed on different types of load-bearing structures, such as brick walls, concrete walls, or steel-framed workshops. - Installation method
Horizontal panels are installed progressively from the bottom upwards.Vertical panels are placed from left to right, maintaining alignment and consistent spacing.
- Façade cladding
- Panel fixing clamp
- Vertical keel / stud
- Insulation layer
- Wall purlin
| Model | YX22-150-450 |
| Effective cover width | 450mm |
| Overall width of sheet | 600mm |
| Thickness | 0.4mm-1.0mm |
| Length | Customizable |
| Type of cladding | Concealed fastener wall panel |
| Installation | Horizontal installation, vertical installation |
| Material | Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet |
| Metal sheet suppliers | Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc. |
| Color | Standard color custom color |
| Surface coating | PE/PVDF, etc. |
| Lifespan | At least 50 years |
| Mounting accessories included | A full range of shear studs, self-tapping screws, clamps, etc. |
| Remarks | 1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request |
- Concealed fastening keeps the façade free of visible screws, protecting both appearance and service life
- Balanced trapezoidal rib design enhances strength while maintaining a refined and uniform exterior
- Horizontal installation ensures smooth alignment across large wall areas
- Manufactured with coated aluminum-magnesium-manganese steel to ensure a reliable resistance to corrosion and harsh weather
- Their low-maintenance finish with self-cleaning properties reduces maintenance costs over time
- Lightweight and easy to install, which makes them practical for a wide range of building projects.
