Concealed Fastener Metal Wall Panels
YX18-84-336

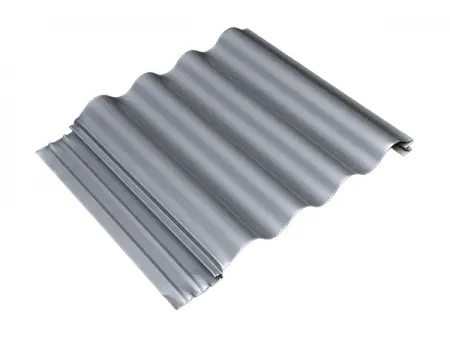

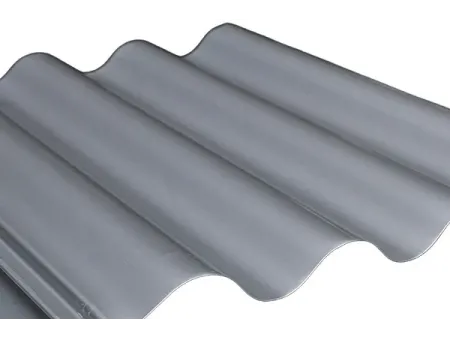

18mm depth×336mm width corrugated profile cladding sheets for facades or exterior walls of various types of buildings
- Effective cover width: 336mm
- Overall width of sheet: 500mm
- Thickness: 0.4mm-1.0mm
- Length: Customizable
- Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Concealed fastener corrugated wall cladding sheets use a subtle wave-shaped profile that gives façades a modern, continuous finish. The fixing system keeps screws concealed, giving the surface a smooth and clean finish while protecting against water. The façade cladding panels use an aluminum-magnesium-manganese alloy that gives them strength without adding extra weight. They are easy to install and perform well even in tough environments. Thanks to their durable structure and a clean finish, they work well for projects that demand both reliability and a polished appearance.
Commonly used in factories, office buildings, hotels, shopping centers, and exhibition halls. They are also suitable for other public and commercial projects that require reliable performance together with a clean and attractive exterior.
- Used on façades of office buildings, commercial projects, and industrial workshops
- Installed on galvanized steel framing (≥1.5 mm) with spacing up to 1200 mm
- Can be fixed to either concrete walls or steel structures
- Usually placed horizontally, panels are secured from bottom to top with a concealed fixing system
- Provides a neat finish without exposed screws and gives the building a solid, clean look
- Façade cladding
- Joint cover strip
- Vertical subframe (stud/keel)
- Insulation layer
- Liner panel
- Air barrier
| Model | YX18-84-336 |
| Effective cover width | 336mm |
| Overall width of sheet | 500mm |
| Thickness | 0.4mm-1.0mm |
| Length | Customizable |
| Type of cladding | Concealed fastener wall panel |
| Installation | Horizontal installation, vertical installation |
| Material | Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet |
| Metal sheet suppliers | Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc. |
| Color | Standard color custom color |
| Surface coating | PE/HDP/PVDF, etc. |
| Lifespan | At least 50 years |
| Mounting accessories included | A full range of shear studs, self-tapping screws, clamps, etc. |
| Remarks | 1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request |
- A concealed screw system creates smooth façades without visible fixings, enhancing both appearance and waterproofing.
- The corrugated design adds strength to the panels while also helping them perform well against fire, harsh weather, and even seismic activity.
- These panels are made from strong alloy materials that resist wear and weather, so they can last for decades with very little maintenance required.
- since the panels are lightweight, they’re easy to move and install, and they come in different colors to match a variety of building designs.
