YX30-160-800

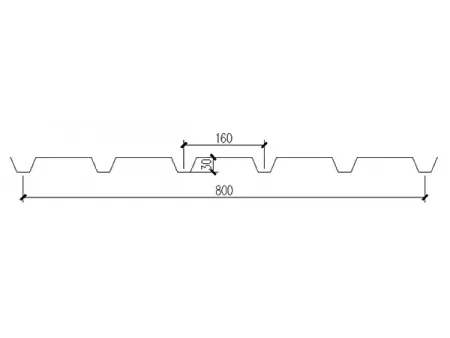

30mm depth×800mm width trapezoidal cladding sheets for facades or exterior walls of various types of buildings

Effective cover width: 800mm
Overall width of sheet: 1000mm
Thickness: 0.4mm-1.0mm
Length: Customizable
Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet

These exposed-fastener trapezoidal wall cladding sheets are designed with a 30 mm rib depth and an effective width of 800 mm, with sheet thickness options from 0.4 mm to 1.0 mm. They can be installed either vertically or horizontally, which is suitable for a wide range of roof and wall applications, including projects with complex shapes.

Applications

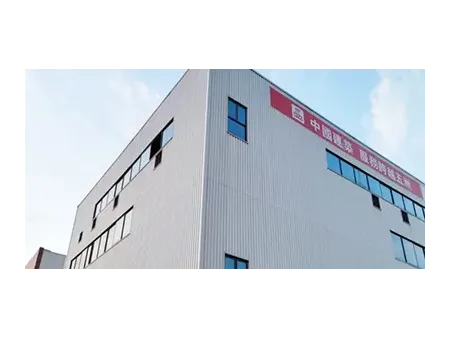

Widely used in industrial plants, commercial buildings, office complexes, hotels, shopping centers, and exhibition halls.

Specifications

Model	YX30-160-800
Effective cover width	800mm
Overall width of sheet	1000mm
Length	Customizable
Thickness	0.4mm-1.0mm
Type of cladding	Exposed fastener wall panel
Installation	Horizontal installation, vertical installation
Material	Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color	Standard color custom color
Surface coating	PE/HDP/PVDF, etc.
Lifespan	At least 50 years
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

The trapezoidal rib design creates a strong sense of depth, giving façades a defined, modern look.
The high material utilization rate helps keep costs under control while still delivering a clean and attractive finish.
Since the panels are lightweight, installation is easier and faster, while transport and long-term maintenance costs remain low.
Made from aluminum-magnesium-manganese alloy with a PVDF coating, the sheets maintain strong self-cleaning properties, durability, and reliable resistance to harsh weather conditions.
