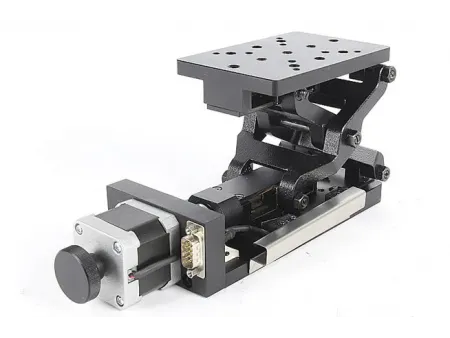

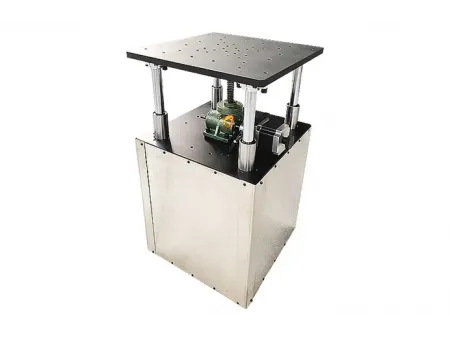

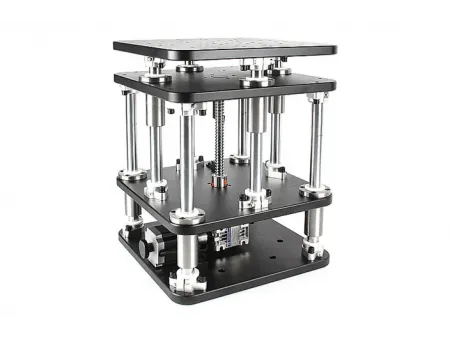

Motorized Precision Vertical Translation Stage
Request a Quote
View All: http://optoelectronics-test.com/5-6-4-7sva5-motorized-precision-vertical-translation-stage.html
7SVA5
Features
- Equipped with a stepper motor and a standard DB9 plug, compatible with 7SC series motion controllers for automated and precise control.
- The driving force is centered on the horizontal platform, ensuring balanced motion without unsteady loading.
- Features a precision worm and worm gear reducer, offering high load capacity and fast lifting capabilities.
- Built with a trapezoidal screw rod that includes a self-locking function for secure positioning.
- Includes a linear bearing guide rail for smooth and stable movement.
- Comes with a zero and limit switch for easy, accurate positioning and enhanced protection during operation.
Specifications
| Model | ||||||
| Table size | 300mm×300mm | 500mm×500mm | ||||
| Travel | 50mm | 100mm | 150mm | 200mm | 300mm | 300mm |
| Height range A | 305-355mm | 355-455mm | 405-555mm | 465-665mm | 608-908mm | 708-1108mm |
| Lead for screw rod | 4mm | 6mm | ||||
| Transmission ratio | 11:1 | 6.1 | ||||
| Standard motor | 57 stepper motor (1.8°) | 85 stepper motor (1.8°) | ||||
| Resolution (8 subdivision) | 0.284μm | 0.52μm | ||||
| Maximum speed (2 subdivision) | 2.9mm/s | 8mm/s | ||||
| Load | 100kg | 200kg | ||||
| Weight | 25.9kg | 26.6kg | 27.3kg | 28kg | 124kg | 127kg |
