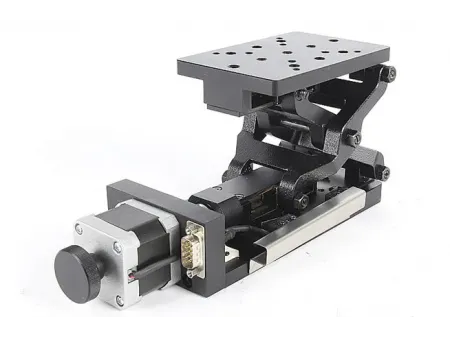

Motorized Precision Vertical Translation Stage
Request a Quote
View All: http://optoelectronics-test.com/5-6-2-7sva2-motorized-precision-vertical-translation-stage.html
7SVA2
Features
- Equipped with a stepper motor and a standard DB9 plug, compatible with 7SC series motion controllers for smooth and automated control.
- The driving force is centered on the horizontal platform, eliminating imbalance issues and ensuring perfect stability.
- Powered by a high-quality ball screw rod for smooth, repeatable movement, long service life, and strong load capacity.
- Supported by precision linear bearing guide rails with middle suspension, delivering high repeatability and stable performance under heavy loads.
- Designed for precise vertical translation, maintaining consistent accuracy.
Specifications
| Model | |||||
| Travel | 50mm | 100mm | 150mm | 200mm | 300mm |
| Table size | 300mm×300mm | 600mm×600mm | |||
| Lead for screw rod | 5mm | ||||
| Ratio of speed reduction | 80:1 | ||||
| Standard motor | 57 stepper motor (1.8°) | ||||
| Resolution (8 subdivision) | 0.017μm | ||||
| Maximum speed (2 subdivision) | 0.35mm/s | ||||
| Repeatability | 0.005mm | ||||
| Load | 80kg | ||||
| Weight | 18kg | 18.5kg | 19kg | 19.5kg | 20.5kg |
