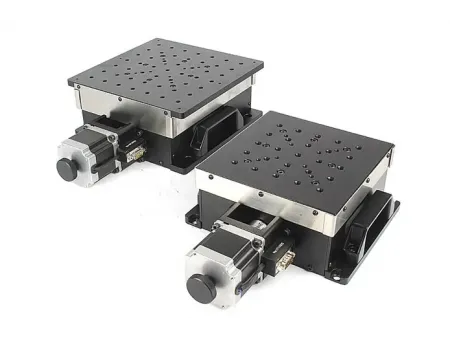

Motorized Precision Vertical Translation Stage
Request a Quote
View All: http://optoelectronics-test.com/5-6-3-7sva4-motorized-precision-vertical-translation-stage.html
7SVA4
Features
- Equipped with a standard stepper motor and DB9 plug, compatible with 7SC series motion controllers for precise automatic control.
- Driven by a precision screw rod, providing high-resolution movement and accurate positioning.
- Features a cross-roller cylinder guide rail for smooth motion, excellent linearity, and strong load capacity.
- Designed with a wedge-type vertical translation, ensuring a lower overall height and stable operation.
- Utilizes a precision linear slide block guide rail for accurate positioning and enhanced stability during vertical movement.
Specifications
| Model | ||
| Travel | 12mm | 25mm |
| Lead for screw rod | 1.5mm | |
| Transmission ratio | 2:1 | |
| Resolution (8 subdivision) | 0.0005mm | |
| Table size | 160mm×160mm | 200mm×200mm |
| Repeatability | 0.003mm | |
| Standard motor | 57 stepper motor (1.8°) | |
| Maximum static torque | 1.2N-m | |
| Rated working current | 2.8A | |
| Maximum speed (2 subdivision) | 10mm/s | |
| Central load | 40kg | 50kg |
| Weight | 5kg | 7.5kg |
