Light Curing Resin 3D Printer Manufacturer

Light Curing Resin 3D Printer

Request a Quote

Website: http://footwear-makingmachine.com/5-light-curing-resin-3d-printer.html

JIC MACHINE provides the outstanding 3D printer with the function of light curing that features high speed, increased efficiency and reliable production. Thanks to the storage function of pre-set parameters, the 3D printer machine is able to precisely print whatever shapes you want.

Material: Photosensitive resin

Applications:

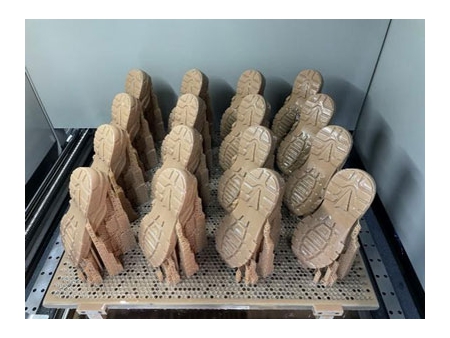

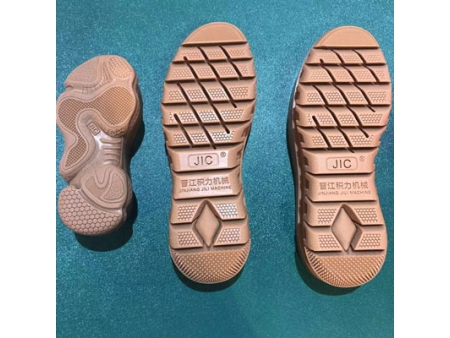

Sample printing, formwork production in quantity, sole texture, and creative design

Technical Specifications

Item	Unit	Specifications
Print volume	mm	600x550x450
Number of lasers		1
Raw material		Photosensitive resin
Minimum layer height	mm	0.06
Scanning speed	mm/s	1000-10000
Light spot diameter	mm	0.1-0.3
Laser power	w	3
Software		JIC Print pro 3.0
Dimensions	mm	1526x1152x2070
Weight	kg	1500
Rated voltage	v	220
Rated power	w	1800

Features

The 3D printer adopts a point laser with interchangeable heads that are long-lasting and reliable;

Resolution of the compressed spot is 0.06mm, which enables the 3D printer to produce high quality prints with fine details;

Variable spots with the latest scanning technology deliver a variety of desired effects;

The 3D printer applies Scanlab’s galvanometer scanner to position the laser beam with high precision;

The liquid level sensor of Panasonic delivers high accuracy detection and the 3D printer can automatically adjust the liquid level;

The moving axle is driven by Yaskawa’s servomotor which delivers high performance;

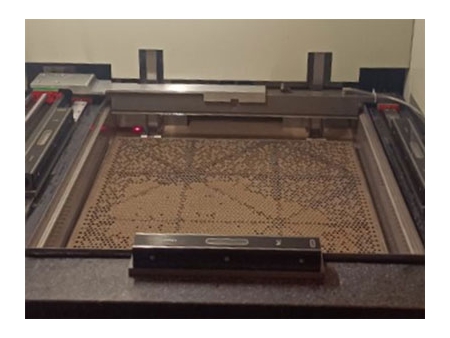

The marble table provides strong and solid support for operation.
