Multi-Color EVA Compression Molding Machine with Vacuum Hood
Request a Quote
Footwear machinery for shoe sole making
Raw material: EVA
Applications

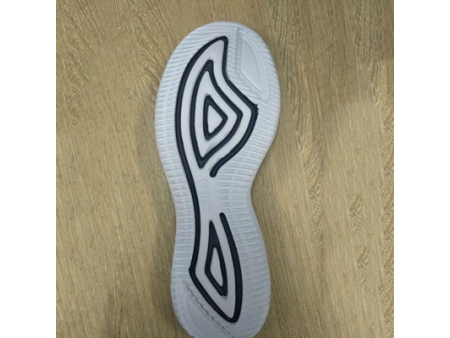

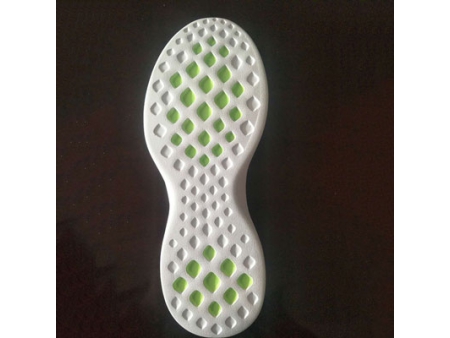

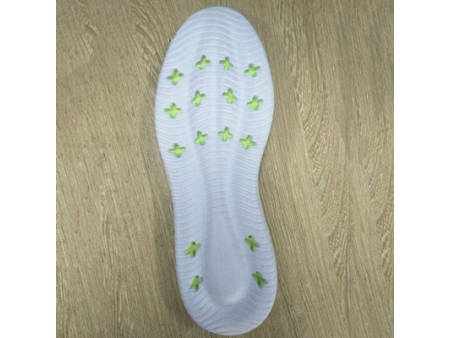

Multi-color EVA foam products
- The EVA compression molding machine can be operated on one side or two sides, which increases productivity;
- Busch vacuum pumps ensure stable production and high-quality products;
- Two molds in one station work independently to double the productivity;
- Self-compensating mold plates contribute to high product quality.
Technical Specifications
| Item | Unit | Specifications | ||
| Raw material | EVA | EVA | EVA | |
| Number of stations | 6 | 8 | 10 | |
| Clamping force | mm | 180 | 180 | 180 |
| Mold opening stroke | mm | 350 | 350 | 350 |
| Mold size | mm | 600*330*2sets | 600*330*2sets | 600*330*2sets |
| Mold height | mm | 100-220 | 100-220 | 100-220 |
| Power of motor | kW | 16 | 16 | 16 |
| Power of heating | kW | 77 | 102 | 128 |
| Total power | kW | 93 | 118 | 144 |
| Oil consumption | kg | 600 | 600 | 600 |
| Machine dimensions | mm | 9560*1450*2950 | 11830*1450*2950 | 13850*1450*2950 |
| Gross weight | kg | 30000 | 39000 | 49000 |
Features
- The compression molding machine is mainly used to manufacture multi-color EVA foam products;
- The vacuum system ensures the molding process is clean and dust-free to produce high-quality products;
- The quality thermal insulation panels effectively preserve heat without use of water circulation;
- The compact structure reduces the occupation of floor space;
- The footwear machine is user-friendly as it is easy and convenient to operate;
- Servomotors and a PLC greatly improve efficiency and save energy.
