Two-Dimensional Mirror Mount
Request a Quote
7MM07
Features
- Equipped with an M6 x 0.25 fine-thread adjustment, partially featuring a copper nut for precise control.
- High-performance tension spring provides uniform resetting force, reducing stress and maintaining stability.
- Allows for an adjustment range of ±3°, enabling flexible positioning.
- Designed with three PTFE supports to protect the lens during movement and operation.
- Includes mounting holes in two directions, making it adaptable for various optical paths.
Specifications
| Model | |||

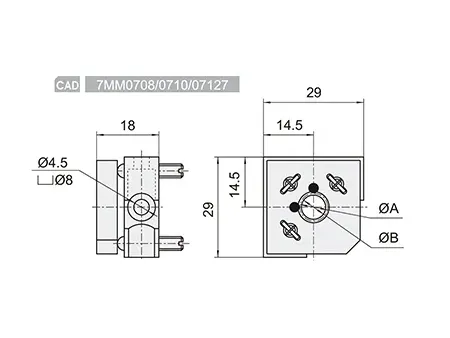

| Diameter of lens C (mm) | 8 | 10 | 12.7(0.5in) |
| Aperture D (mm) | 7 | 9 | 11.7 |
| Weight (g) | 30 | 29 | 28 |
| Model | |||

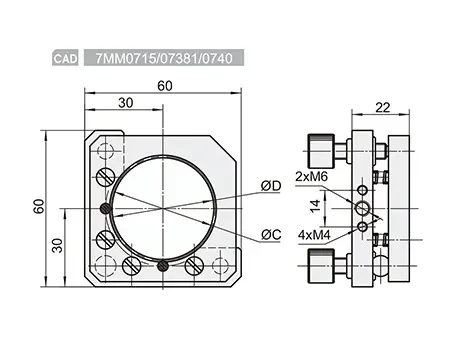

| Diameter of lens C (mm) | 15 | 38.1(1.5in) | 40 |
| Aperture D (mm) | 14 | 37.1 | 39 |
| Weight (g) | 125 | 103 | 101 |
