GM3010AH5 Series Extra-large Wood CNC Machine
Request a Quote

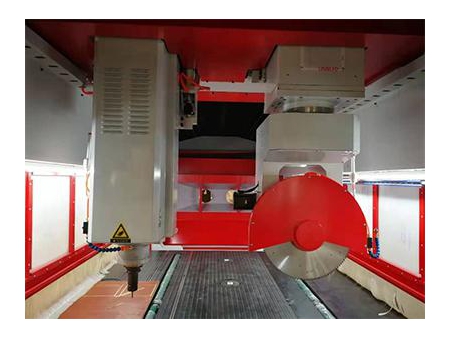

The extra-large wood CNC machine used to machine wood composite board, carbon fiber board, honeycomb composite material and more. It carries out a variety of linear and curve modelling via a 3-axis linkage process while the saw blades quickly complete linear cuts and bevel cuts on workpieces at any angle using a 5-axis linkage process.
Materials Cut

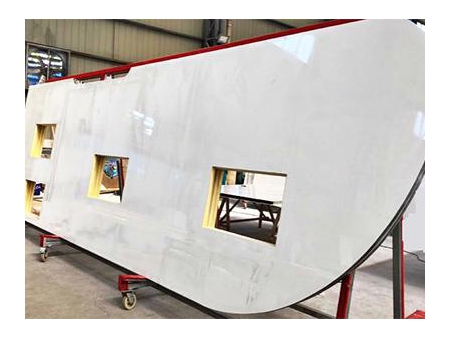

Any type of insulated composite board including wooden aluminum composite panel, aluminum foam panel, aluminum-glass fiber sandwich panel, and more.
Applications

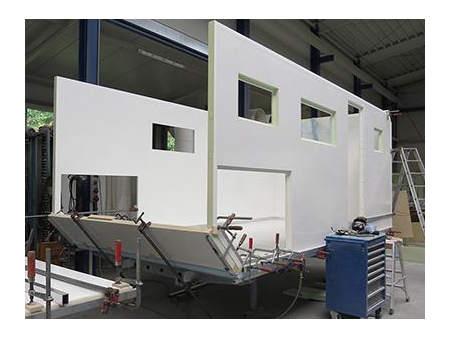

The extra-large wood CNC machine is widely used in manufacturing mobile homes, caravans, tow trucks, trucks and more.
Features

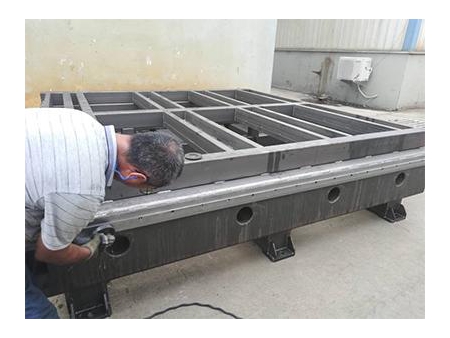

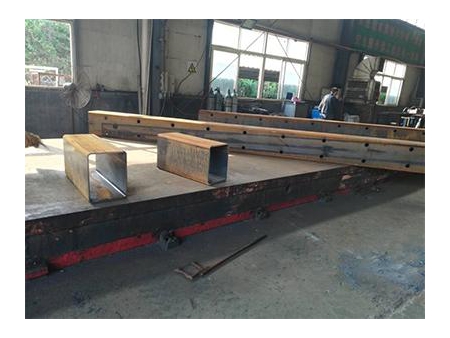

- The machine body features a monolithic steel structure manufactured using a 5-face milling center (3.3*8m) that ensures the parallel degree in assembly, verticality of the three axes, and the stable machine operation.
- Our workers have extensive experience in machine assembly, with an average work experience of more than 10 years. This ensures they are capable of paying attention to every tiny detail.

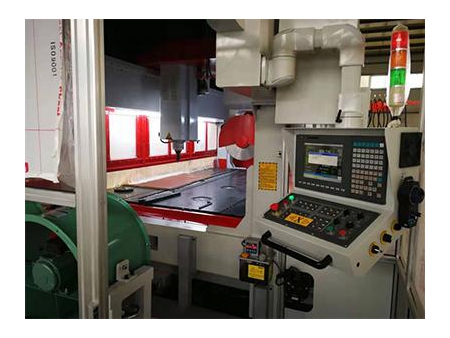

- The Syntec control system features a stable, easy operation and performance.

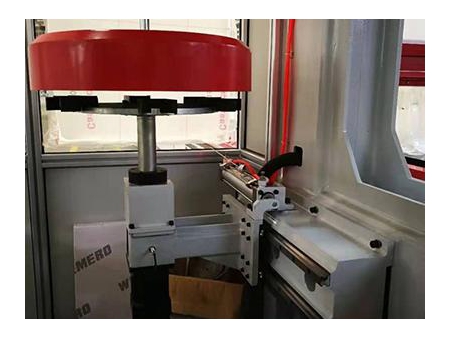

- The disc-type automatic tool changer holds up to 6 tools, effectively improving processing efficiency.

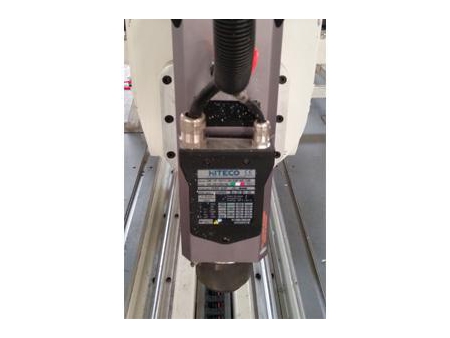

- The CNC machine is equipped with 5.5KW water-cooled tool change spindle with a speed of 6000 -12000 rpm/min. The maximum shank diameter of the BT40 spindle is φ32mm. It is suitable for rapidly cutting sandwich plates.
- The CNC machine is equipped with a saw blade, protective shield, emergency stop switch, and oil lubrication system. The table also features a lighting system to ensure the working area is fully visible.
Parameters
| Model | CC-GM3010AH5 |
| Stroke | 3000*10000*350mm （X*Y*Z axis） |
| Working area | 3000*10000*150mm （X*Y*Z axis） |
| Motor for saw blade | 7.5KW/2800 |
| Max. feed rate | X-axis≥35000mm/min, Y-axis≥35000mm/min, Z-axis≥9000mm/min |
| Positioning accuracy | ±0.1/500mm |
| Repeatability | ±0.05/500mm |
| Power | 52KW |
| Working voltage | AC 380V/50HZ （adjustable） |
| Pressure | ≥6.5Kgf/cm² |
| Package dimensions | 11500mm x 2280 x 2300mm |
| Weights | 80000 kg |
Optional Device
The default spindle is made in Taiwan, and can be replaced with a 9KW SCM water cooled automatic tool change spindle.
