Reducers for Glass Lined Reactor

Request a Quote

Website: http://glasslining-en.com/6-1-reducer-for-glass-lined-reactor.html

Power transmission unit for speed control in glass lined reactors

Reducers are used to drive the agitator inside a glass lined reactor. It adjusts the rotating speed; transfers torque and ensures stable operation of the mixing process.

Reducer Types

Cycloidal speed reducer
Vertical helical gear reducer
Horizontal bevel gear reducer
Parallel shaft helical gear reducer

Working Principle

Speed reducers are widely used in applications where low speed and high torque are required. In operation, the input shaft receives power from motors, combustion engines, or other high-speed rotating equipment. A small gear on the input shaft engages with a larger gear on the output shaft, reducing speed while increasing torque. The ratio between the number of teeth on the gears determines the transmission ratio. Most reducers are built with multiple gear sets that allow them to run smoothly and provide reliable performance under a variety of operating conditions.

Compatible Components

1. Motors

Standard motors, including explosion-proof designs
Inverter and non-inverter motors
YB2 and YB3 series energy-saving motors

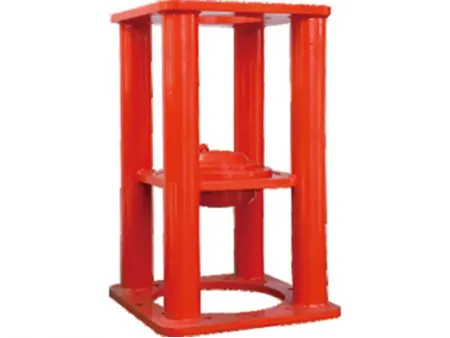

2. Mounting Racks

BLD rack for cycloidal speed reducers
RF rack for vertical helical gear reducers
KF rack for horizontal bevel gear reducers
FF rack for parallel shaft helical gear reducers
