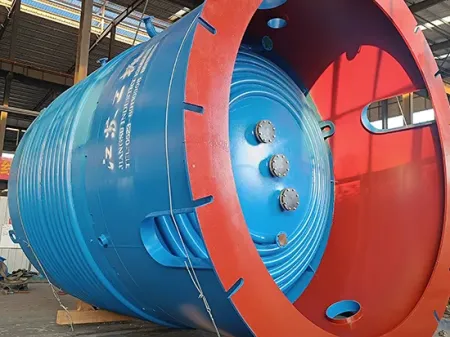

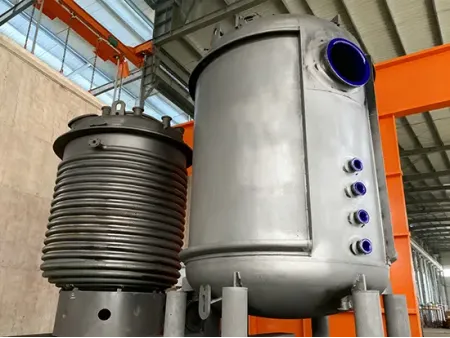

Glass Lined Reactor, Half Pipe Coil Jacketed

Request a Quote

Website: http://glasslining-en.com/1-3-glass-lined-reactor-half-pipe-coil-jacketed.html

Corrosion-resistant reaction vessels with half pipe wrapping around the outside wall of the vessel

Half pipe coil jacketed glass lined reactors are widely used in chemical, petrochemical, pharmaceutical, dye, pesticide, and food industries. Compared with conventional jacketed glass lined reactors, the half pipe coil design offers several clear advantages in terms of safety, heat transfer, rigidity, and corrosion resistance.

Capacity range: 50 – 80,000 L
Maximum pressure: up to 16 bar (atmospheric to high pressure)
Operating temperature range: –19 °C to 200 °C
Standards: CE/JIS/ASME/GB

Vessel type and safety
In half pipe coil jackets, the heating or cooling medium flows in a steady way, which makes them safer than conventional jackets. The design also helps the reactor stay more stable when working under pressure.
Heat transfer performance
The heat exchange area of a half pipe coil is roughly one-third smaller than that of a conventional jacket, but because the medium flows two to three times faster, the overall heat transfer is much more efficient. Conventional jackets often have problems such as flow disturbance, short circuits, or uneven heat transfer. The half pipe coil design avoids these issues and works especially well with liquid heating and cooling media. For steam heating, though, conventional jackets can sometimes be a better option because of the way steam interacts with the grouped pipes.
Structural rigidity
The design of the half pipe coil not only strengthens the vessel but also improves its stability. With an open-flow layout that allows high-speed circulation, it helps reduce external pressure on the inner wall of the reactor, resulting in greater overall mechanical strength.
Corrosion resistance
When cooling water is used, conventional jackets are more likely to suffer corrosion from ions like H⁺ and Cl⁻, which can cause deposits to build up and damage the walls. The half pipe coil design avoids this problem thanks to its faster flow through the upper and lower channels, reducing the chance of buildup and protecting the walls from corrosion.

Dimensions of Half Pipe Coil Jacket Glass Lined Reactors (mm)

Volume (L)	300	500	1000	1500	2000	3000	5000		6300	8000	10000
Item	300	500	1000	1500	2000	3000	5000		6300	8000	10000
D	800	900	1200	1300	1300	1600	1600	1750	1750	2000	2000
D1	900	1000	1300	1450	1450	1750	1750	1900	1900	2200	2200
D2	1032	1148	1488	1639	1675	2044	2044	2218	2218	2500	2533
D3	560	630	840	910	910	1120	1120	1225	1225	1400	1400
D4	720	810	1080	1180	1180	1440	1440	1580	1580	1800	1800
D5	350	350	400	400	400	450	450	450	450	510	510
D6	65	65	80	80	80	95	95	95	95	110	110
D7	23	23	30	30	30	30	30	30	30	36	36
H	800	1000	1200	1400	1745	1739	2700	2317	3025	3120	3460
HO	2530	2759	3222	3440	3785	4073	5115	4792	5850	5450	6270
H1	1050	1050	1240	1240	1240	1454	1535	1535	1535	1650	1700
H2	380	409	482	500	500	580	580	640	640	720	710
H3	260	270	300	330	330	330	330	330	330	420	355
H4	/	!	丨/	960	1335	1242	2000	1490	1700	2000	2650
H5	/	/	/	/	/	/	700	420	700	900	880
H6	390	420	500	600	600	700	700	700	815	850	850
B1	/	/	/	507	507	614	614	550	550	550	540
B2	250	270	350	350	370	370	370	370	370	400	450
Power (kW)	1.5	3	4	4	4	5.5	7.5	7.5	11	11	11

Nozzle Specifications (mm)

Volume (L)	300	500	1000	1500	2000	3000	5000		6300	8000	10000
Item	300	500	1000	1500	2000	3000	5000		6300	8000	10000
a	125	150	300x400	300x400	300x400	300x400	300x400	300x400	300x400	300x400	300x400
b	100	100	125	125	125	150	150	150	150	200	200
c	65	65	100	100	100	100	100	125	125	200	200
d	80	80	100	100	100	100	100	125	125	150	150
e	65	100	100	125	125	125	125	125	125	125	125
f	65	125	125	125	125	125	125	150	150	125	125
g	65	100	100	100	100	100	100	125	125	150	150
h	/	/	100	200	125	125	125	150	150	125	125
K	/	/	/	/	/	/	/	/	/	150	150
h~	80	80	100	100	100	125	125	125	125	125	150
L1-L3	25	32	32	40	40	50	50	65	65	65	65
N1.N2	/	/	/	50	50	50	65	65	65	65	65
N3	/	/	/	/	/	/	65	65	65	65	65

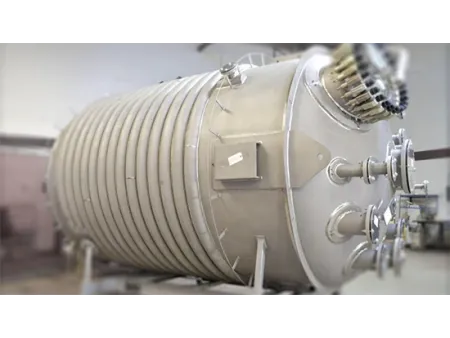

We also provide for Glass-Lined Equipment
