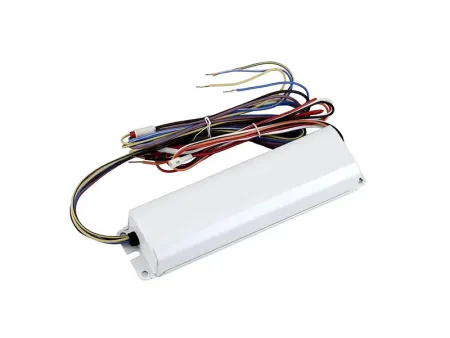

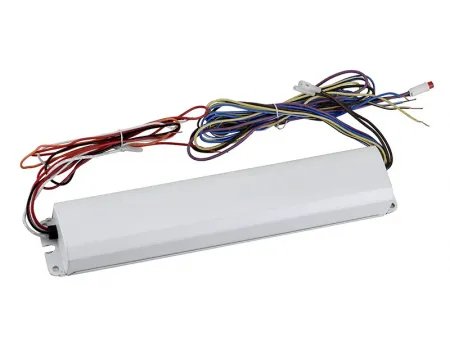

JTEB1300 Emergency Ballast

Request a Quote

Website: http://ft-emergencylight.com/6-2-5-emergency-ballast.html

Emergency Lignting

The emergency ballasts are designed to allow a single lighting fixture to function in both normal and emergency modes. During a power outage, the emergency lighting automatically switches to emergency operation, providing backup power for at least 90 minutes to support fluorescent or PLC lamps. The unit integrates the battery, charger, and inverter into one compact housing. It can be installed within the fixture’s wiring channel or on top of the fixture and is UL and cUL certified.

Features

Durable powder-coated steel housing, suitable for fluorescent emergency lighting applications
Integrated nickel-cadmium battery, charger, and inverter circuitry
UL certified and compliant with NEC and Life Safety Code emergency lighting standards
Cold-start capable and compatible with specified lamp types
Equipped with an LED charging indicator and test switch
Dual voltage input: 120/277VAC with ≥90 minutes emergency runtime

Technical Specifications

Operation mode: AC/DC
Input voltage: 120/277VAC, 60Hz
Battery: 8.4V 2500mAh nickel-cadmium battery
Compatible lamps:T8: 17W–40W; T12: 20W, 25W, 34W, 40W; T5: 14W, 21W, 28W; T5HO: 39W, 54W; CFL (4-pin): 18W, 24W, 36W, 40W, 50W(Please consult your supplier for compatibility confirmation)
Operating temperature: 0℃ to 50℃
Charger: High-reliability solid-state electronic charger with smart trickle charging system
Indicator light: Red LED charge indicator
Emergency duration: ≥90 minutes
Certifications: UL&cUL, CEC, DOE, FCC
Protection function: Low-voltage cut-off to prevent battery over-discharge

Ordering Information

Model	JTEB1300
Main Specifications	17W-40W T8, 20W/25W/34W/40W T12, 14W/21W/28W T5, 39W/54W T5HO,18W/24W/36W/40W/50W CFL(4pin) fluorescent lamp, 90mins, Ni-Cad 8.4V2500mAh

MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing Information
Packing		White box
Carton Size (L×W×H)		58×22.5×23cm
Carton CBM		0.03m³
Quantity per Carton		12pcs
Gross Weight		15.2kgs/ctn
Net Weight		14.2kgs/ctn
Container Loading Quantity		1×20'	1×40'	1×40' HQ
		11000pcs	23000pcs	26800pcs
